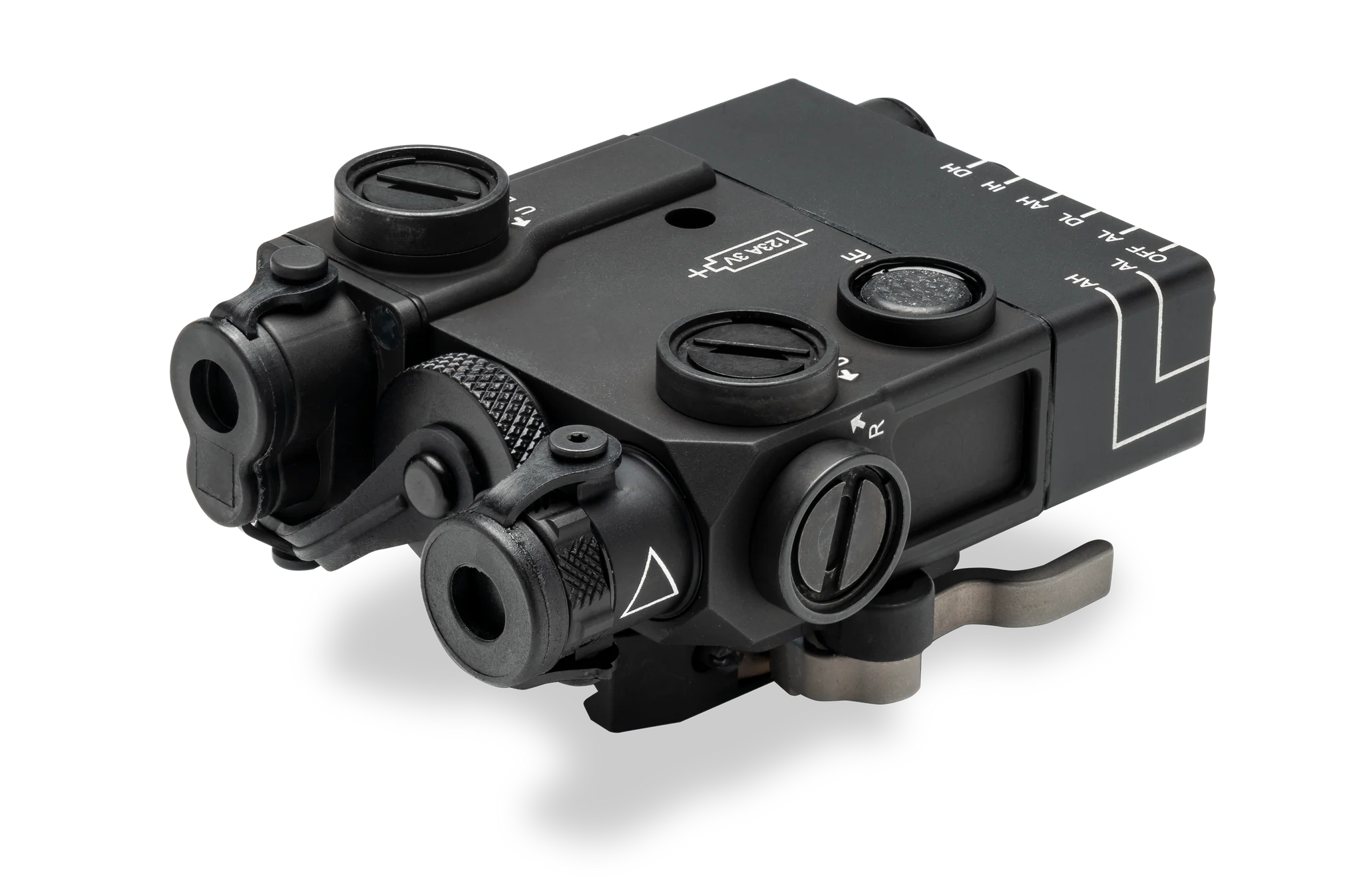

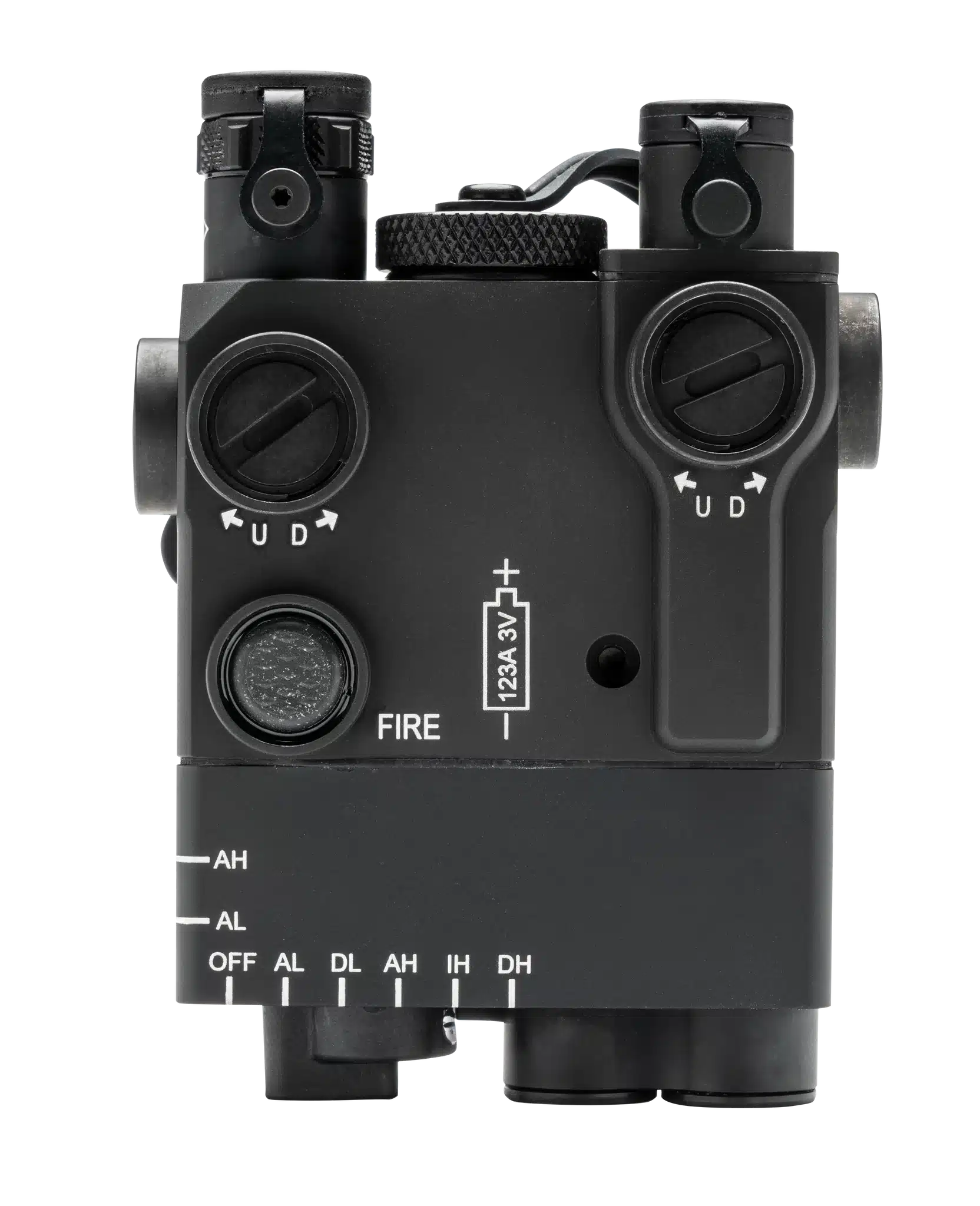

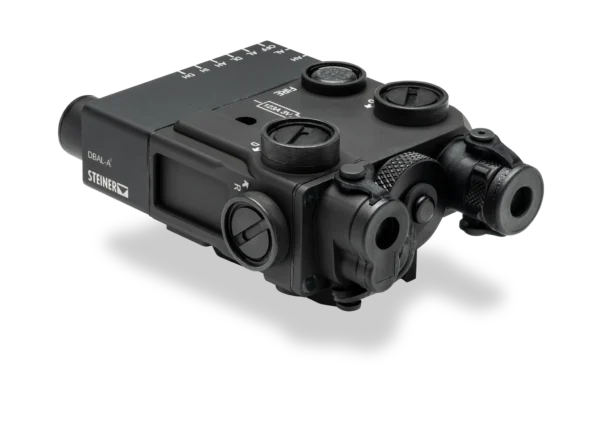

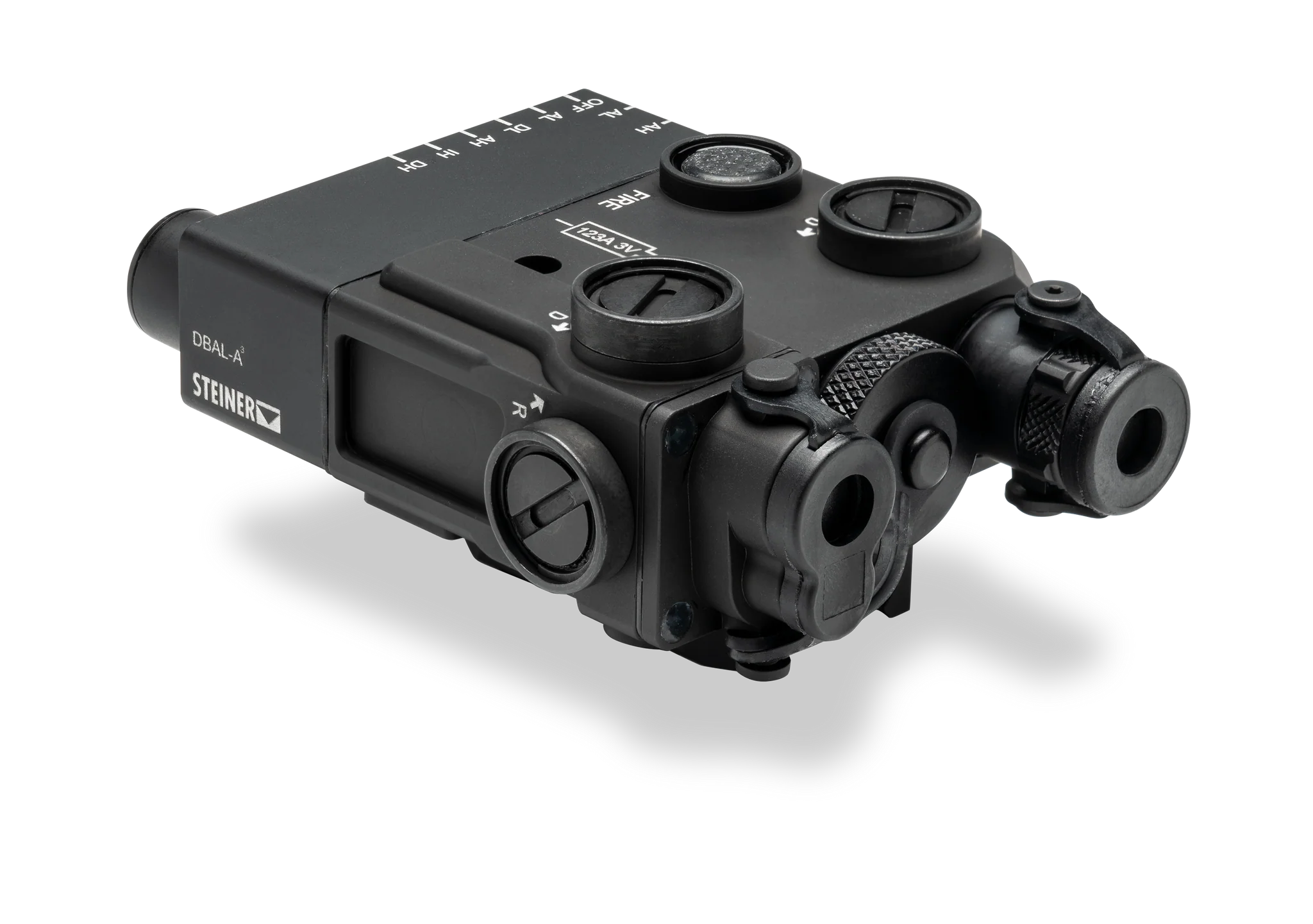

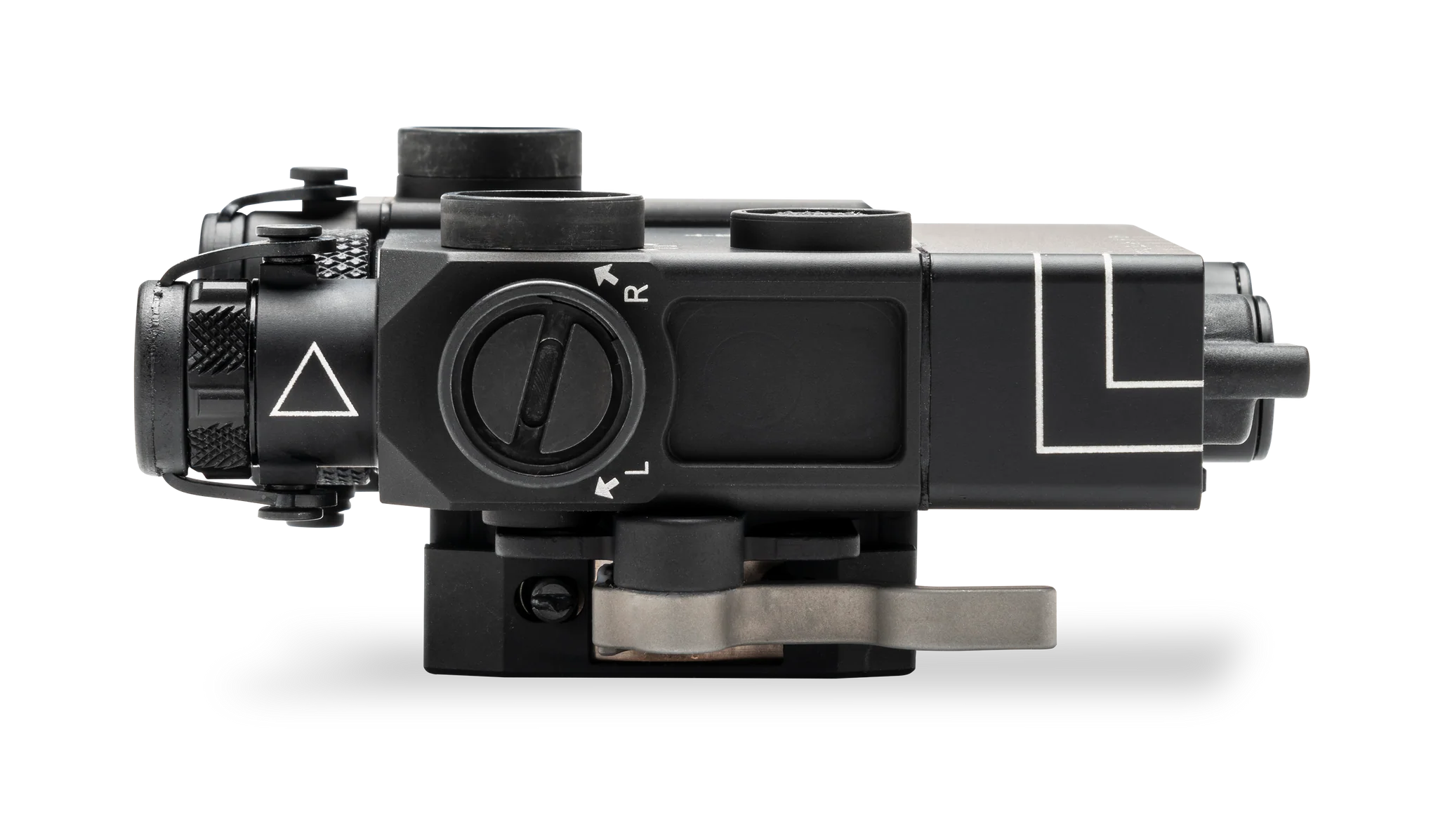

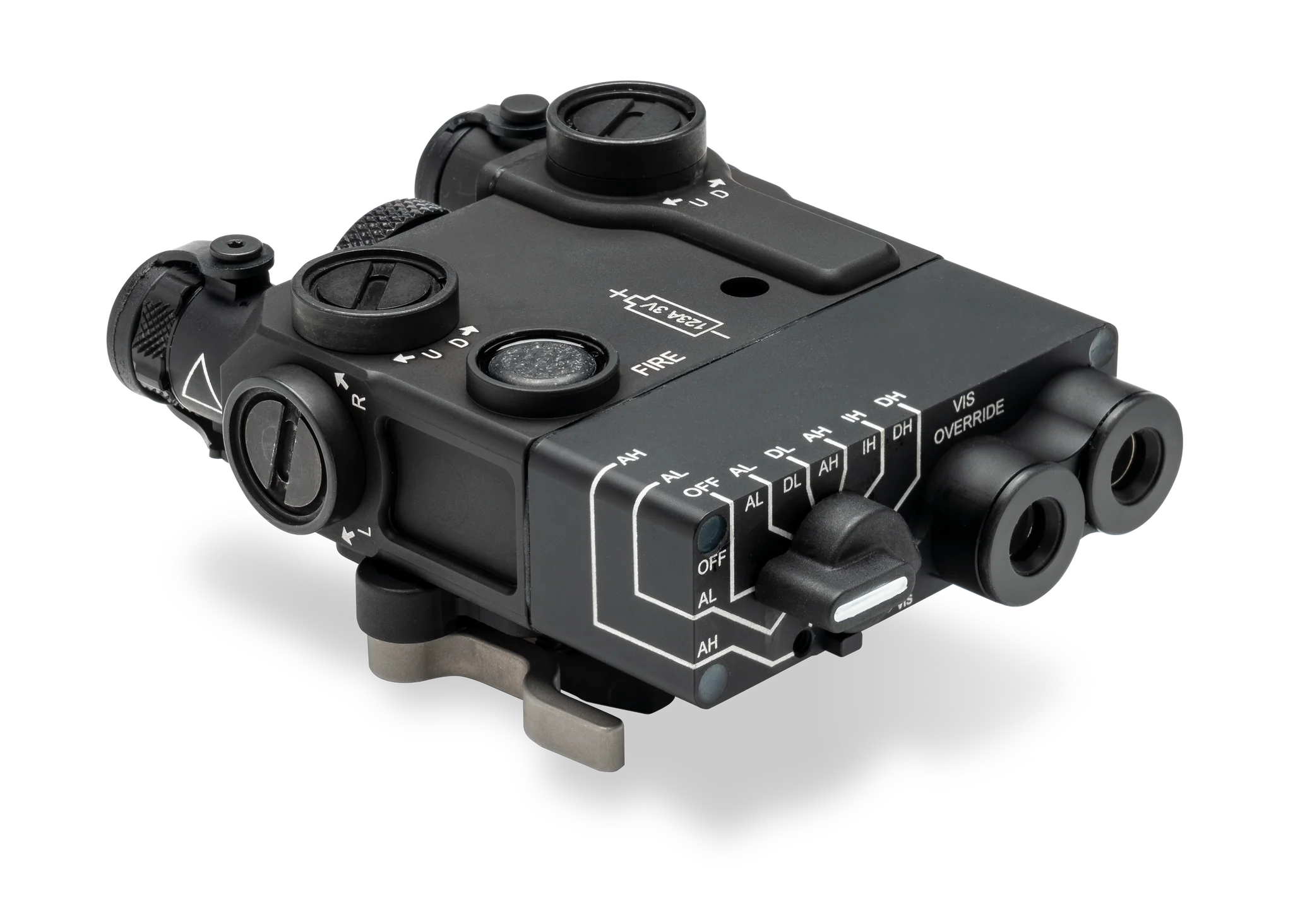

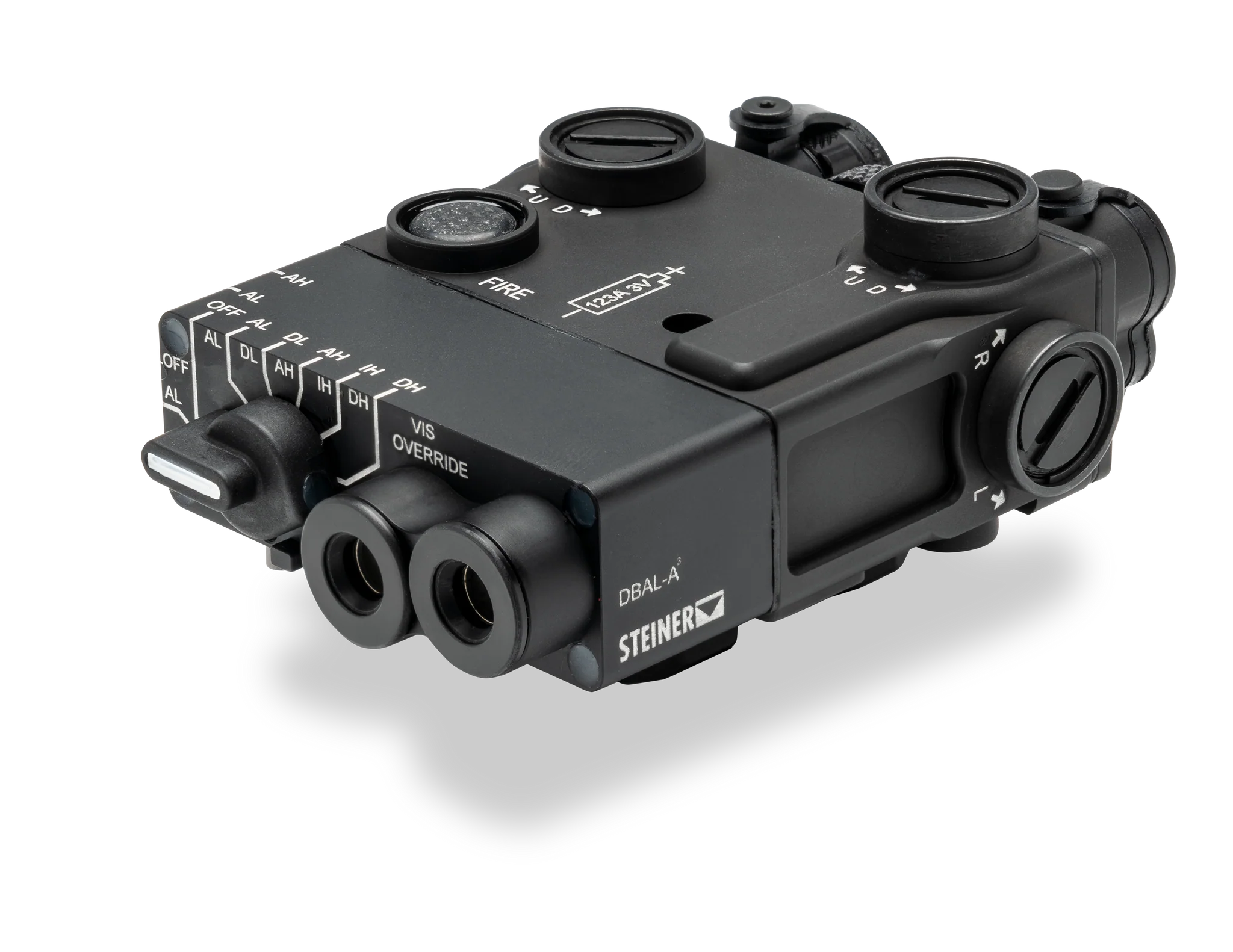

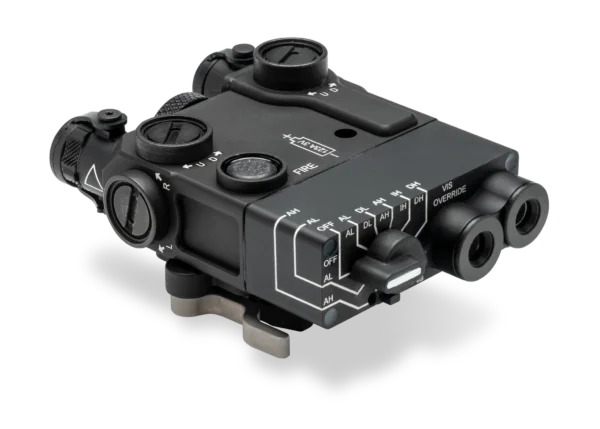

Steiner DBAL-A3 Full Power — Dual Beam Aiming Laser (Model 19021)

The Steiner DBAL-A3 Model 19021 is the full-power restricted variant — 80mW red visible laser, 50mW IR pointer, and 200mW adjustable IR illuminator. The 200mW illuminator is the high-output configuration, comparable to the AN/PEQ-15 LA5 UHP in illuminator power. Manufactured in the USA. 6061-T6 aircraft aluminum, MIL-STD-810G rated, submersible to 20m.

This product is restricted to active military and law enforcement personnel only. Proof of active credentials required at time of purchase. ITAR controlled — for sale to U.S. persons only.

---

Key Features

80mW red visible laser — Class 3B

Highly visible in daylight. ~120m daytime range. Co-aligned with the IR laser — zero visible in daylight and IR is automatically zeroed to the same point of impact.

50mW IR laser pointer — Class 3B

High-power IR aiming laser visible with night vision. Range >2500m. Slaved to visible laser for co-aligned zero.

200mW adjustable IR illuminator — Class 3B

The 19021’s defining feature — 200mW IR illuminator with adjustable beam from tight spot to wide flood. Range >4000m. Significantly more powerful than the standard 50mW illuminator version, providing meaningful long-range illumination capability comparable to the AN/PEQ-15 LA5 UHP.

Visible override

Dual remote cable ports allow connection of a Y-cable to simultaneously activate the visible laser and a tactical light. Immediate transition from IR to visible operations with a single pressure pad press.

High and low power modes

Selectable output levels for both IR and visible lasers. Low power for close quarters, high power for extended range.

Single activation switch

Tap and release for momentary activation. Double-tap for 5 minutes continuous on. Integrated push button plus included dual cable remote switch.

6061-T6 aluminum housing

MIL-SPEC Type III hardcoat anodized. ESD compliant for air worthiness. Meets MIL-STD-810G. Submersible to 20m.

QD HT Mount included

Patented self-adjusting quick-release Picatinny mount. Attaches to any MIL-SPEC 1913 rail.

---

Specs at a Glance

Model	19021
Visible laser	Red, <80mW, Class 3B
IR laser pointer	<50mW, Class 3B
IR illuminator	<200mW, Class 3B (adjustable beam)
Wavelength — visible	642nm ±3%
Wavelength — IR	830nm ±3%
Housing	6061-T6 aircraft aluminum, MIL-SPEC Type III hardcoat anodize
Weight	8.3 oz / 235g (with battery)
Dimensions	3.7″ × 2.7″ × 1.7″
Battery	CR123A, >3 hours
Water resistance	Submersible to 20m
Temperature	-40°C to +65°C
Standard	MIL-STD-810G
Mount	QD HT Mount (Picatinny)
Warranty	2 years
Restricted	LE/Mil only

---

Common Questions

How does the 19021 differ from the civilian DBAL-A3?
The civilian DBAL-A3 has a 0.7mW IR pointer, 4mW IR illuminator, and 5mW visible laser — all eye-safe Class 1/3R. The 19021 is full power: 50mW IR pointer, 200mW IR illuminator, and 80mW visible laser — all Class 3B. The 200mW illuminator provides dramatically greater range and flood capability than the civilian version.

How does the 19021 compare to the AN/PEQ-15?
The 19021 matches the LA5 UHP variant of the PEQ-15 in illuminator output at 200mW. The DBAL-A3 adds visible override capability (simultaneous visible laser + tactical light activation via Y-cable) not found on the PEQ-15.

Is credentials verification required?
Yes — purchase of this product requires proof of active military or law enforcement credentials. Contact us before ordering to initiate the verification process.

This product is subject to U.S. export control laws. ITAR controlled. Restricted to active military and law enforcement personnel. For sale to U.S. persons only.
