Description

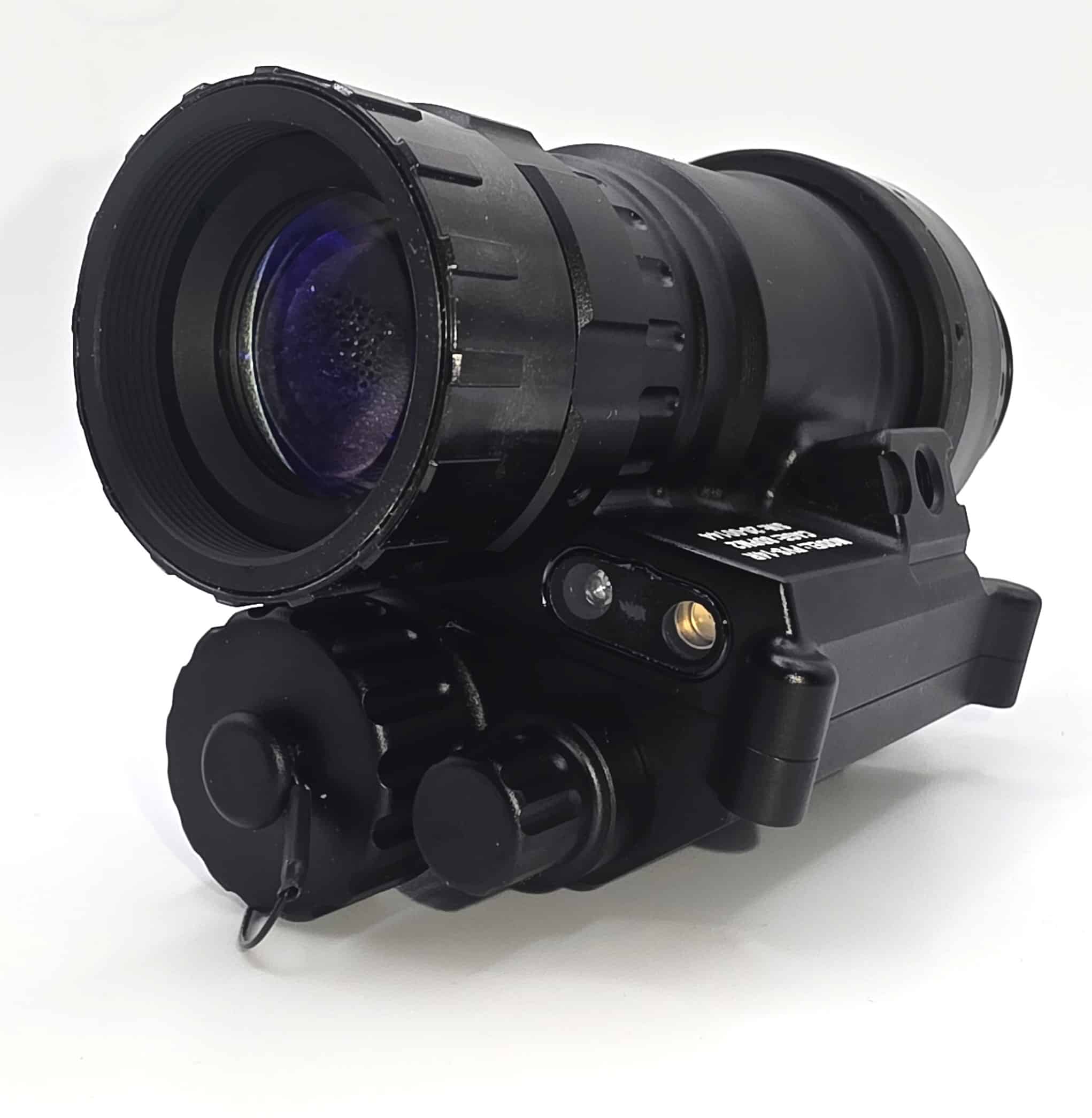

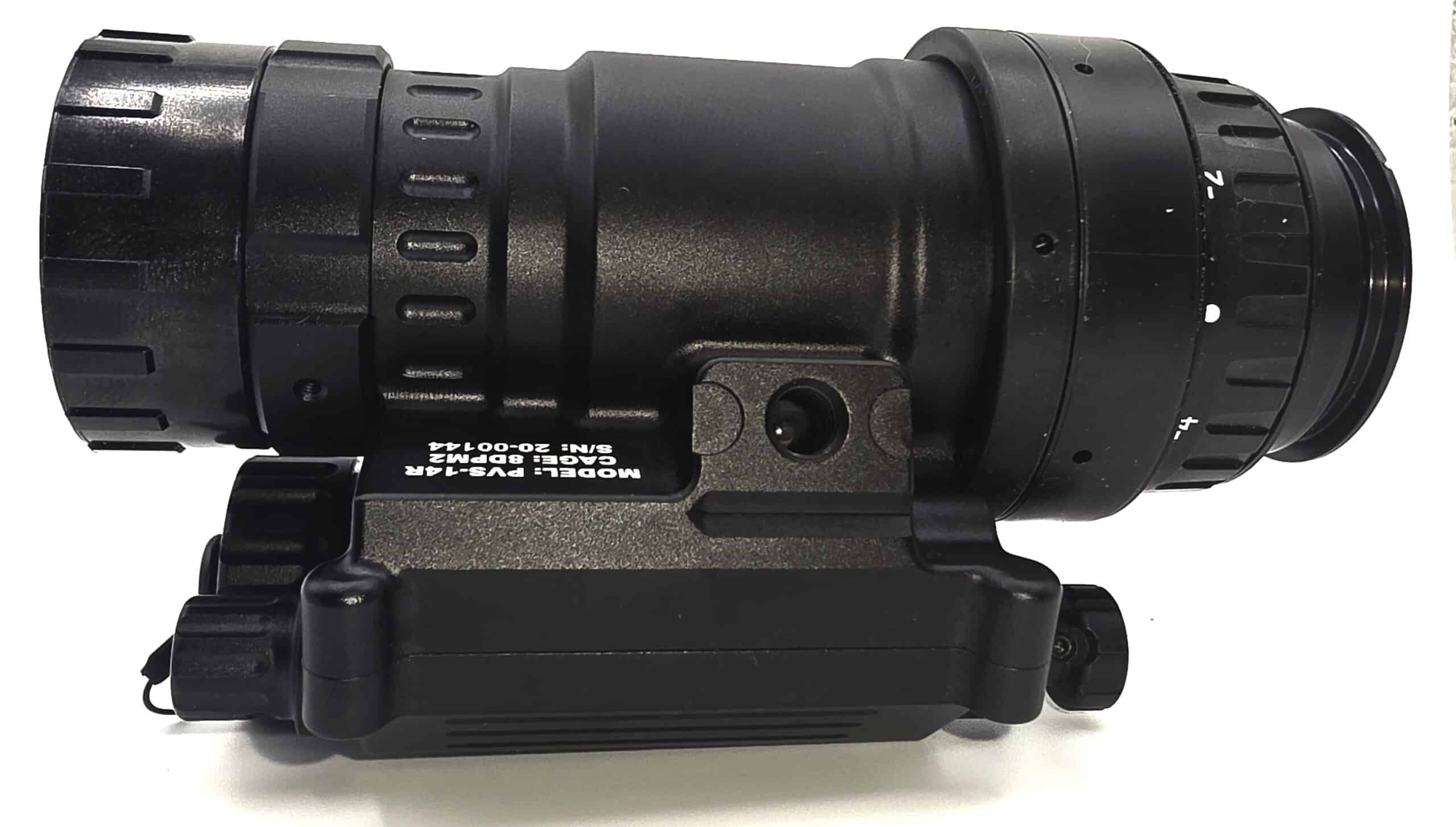

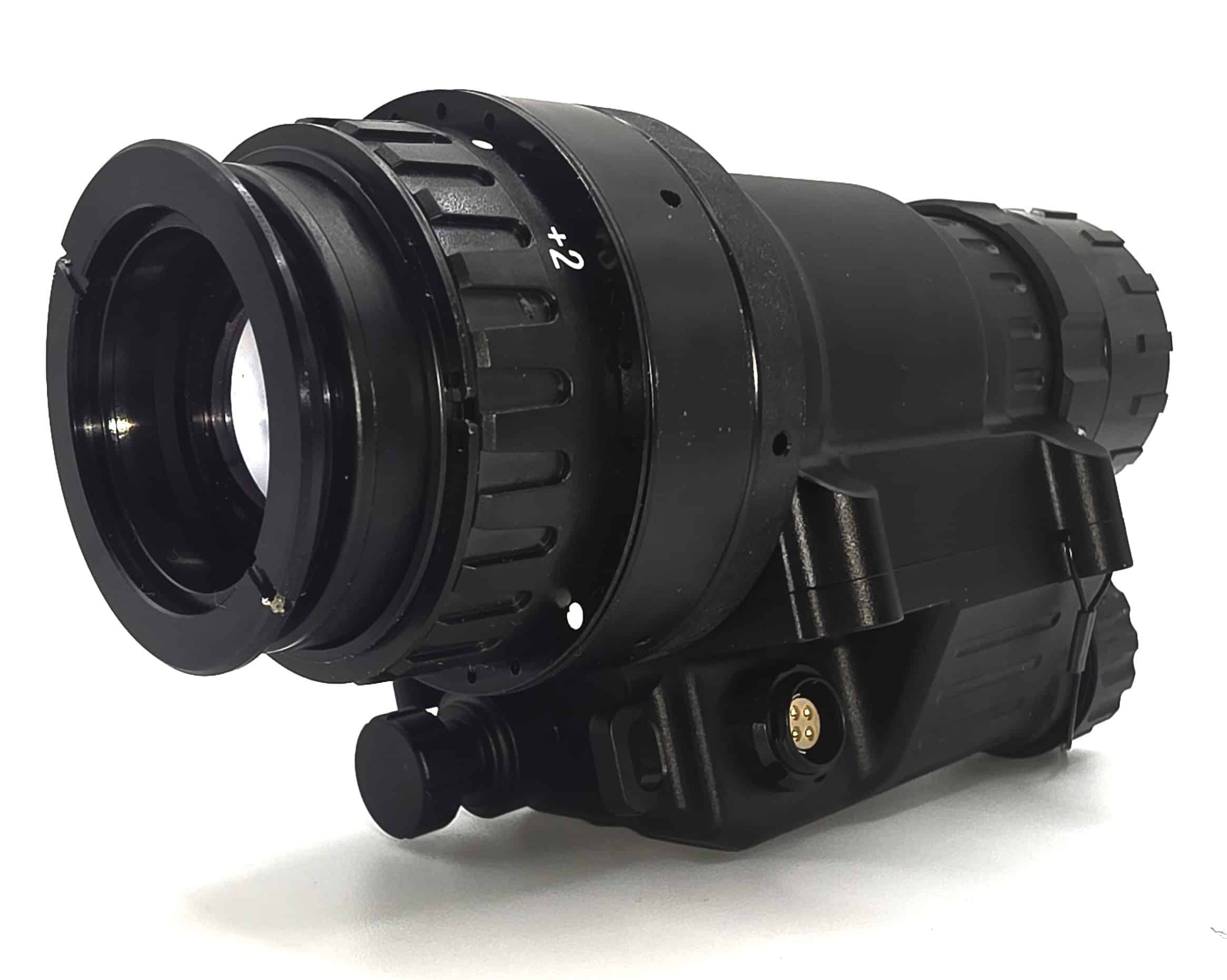

PVS-14R — Gen 3 Night Vision Monocular Ruggedized

The PVS-14R is built on the Steele Industries ruggedized aluminum housing — 7075-T6 aluminum, lighter than standard PVS-14 polymer at 310g, with greater structural rigidity. CR123 battery with reverse polarity (inserts either orientation), Fischer port for external battery pack, ~50 hour runtime. Lifetime no-questions-asked housing warranty from Steele Industries. Full PVS-14 controls, accessories, and optics compatibility.

---

Why Operators Choose the PVS-14R

7075-T6 aluminum housing

Lighter than the standard PVS-14 polymer housing at 310g, with greater structural rigidity. CNC-machined by Steele Industries.

CR123 with reverse polarity

CR123 onboard battery inserts in either orientation — no fumbling in the dark to orient the battery correctly.

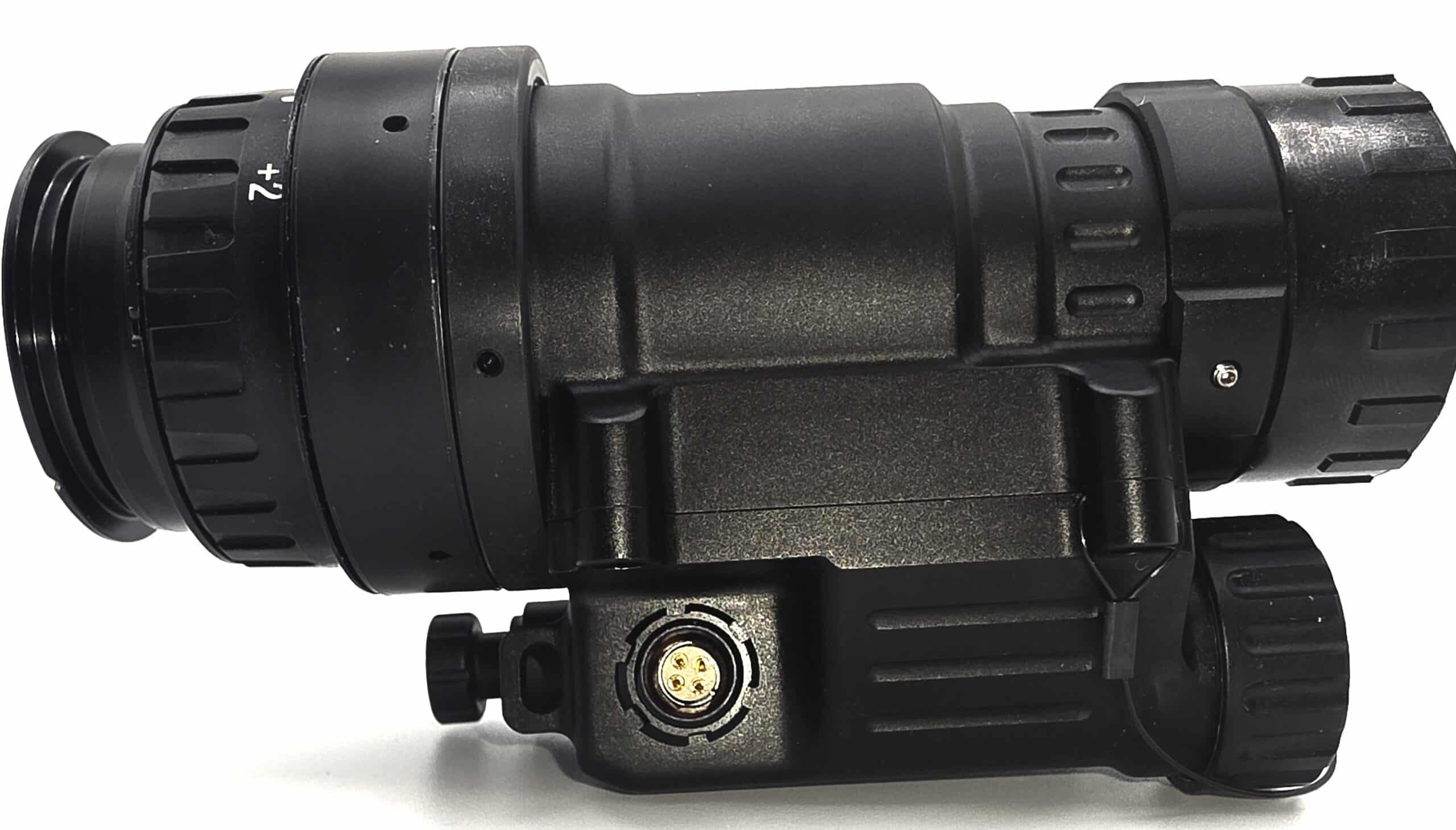

Fischer external battery port

Connect an external battery pack via Fischer port for extended runtime beyond the ~50 hour onboard battery life.

Manual gain

Full manual gain control via MX-11769 format. MX-10160 tubes are also compatible — gain function not available with MX-10160.

Full PVS-14 compatibility

Same optics, accessories, J-arms, and helmet mounts as a standard PVS-14. If you run PVS-14 accessories, they work here.

Lifetime no-questions-asked housing warranty

Steele Industries warrants the housing for life — repair or replacement, no questions asked.

---

Choosing Your Tube

Elbit XLSH White Phosphor — Thin-filmed Gen 3 tubes made by Elbit Systems of America. High sensitivity, proven low-light performance, may show minor cosmetic blemishes in the image area. The standard Elbit configuration and a trusted performer across military and law enforcement. 10-year warranty.

Elbit PH White Phosphor — Tighter spot specifications than XLSH. Fewer and smaller blemishes in the image area for a cleaner viewing experience. 10-year warranty.

L3Harris 24UA Unfilmed White Phosphor — Top of the L3Harris unfilmed lineup. Improved contrast, strong SNR, highly regarded by experienced operators. U.S.-made Gen 3. 10-year warranty.

NNVT Autogated White Phosphor (Gen 2+) — NNVT tubes are Gen 2+, not Gen 3. They are non-U.S. manufactured and carry a 2-year warranty. Autogating automatically adjusts tube gain in rapidly changing light — useful near vehicle headlights, muzzle flash, or streetlights. Solid performance at a lower price point than U.S. Gen 3 tubes. If Gen 3 performance and U.S. warranty coverage are priorities, choose Elbit or L3Harris.

What is FOM?

Figure of Merit is calculated by multiplying a tube’s resolution (line pairs per mm) by its signal-to-noise ratio. A higher FOM generally indicates better overall performance, but two tubes with identical FOM can render differently in the field. Every tube ships with its actual measured datasheet.

Hand Select

Email us to request datasheets on available tubes before purchasing. You’ll see the actual measured specs — FOM, SNR, resolution, EBI, and halo — for the specific tube going into your unit. Call (888) 330-7057 or email sales@superiortac.com — we carry more configurations than the dropdown shows.

---

Specs at a Glance

Housing	Steele Industries 7075-T6 aluminum, CNC-machined
Magnification	1x
FOV	40°
Focus range	9.8″ to infinity
Diopter	-6 to +2
Eye relief	25mm
Power	1x CR123 (reverse polarity) + Fischer external port
Battery life	~50 hours on lithium
Weight	310g (with std milspec optics)
Dimensions	4.5″ × 2.25″ × 2.0″
Water resistance	Submersible to 66ft
Tube format	MX-11769 (manual gain) / MX-10160 (no gain function)
Optics	PVS-14 compatible eyepiece and objective

---

Warranty

Housing: Lifetime no-questions-asked warranty from Steele Industries.

U.S.-made Gen 3 tubes (Elbit and L3Harris): 10-year warranty — covers the full unit including housing, optics, electronics, and tube. Does not cover accidental damage or misuse.

NNVT tubes (Gen 2+): 2-year warranty.

All units from Superior Tactical are backed by in-house repairs with free diagnostic. If something goes wrong, you’re calling us.

---

Who Buys the PVS-14R from Superior Tactical

Operators who want the familiar PVS-14 platform with a metal housing upgrade. The 7075-T6 aluminum housing is lighter than the standard polymer while being significantly more rigid — and the Fischer port extends runtime for long-duration operations. If you’re already invested in the PVS-14 accessory ecosystem, the PVS-14R drops straight in with no changes to your mounts, J-arms, or glass.

---

Common Questions

How does the PVS-14R differ from a standard PVS-14?
Aluminum housing instead of polymer — lighter at 310g and more rigid. CR123 battery with reverse polarity instead of AA. Fischer port for external battery pack. Lifetime housing warranty. Otherwise the same platform — same optics, same accessories, same controls.

Does the NNVT tube option work with manual gain?
Yes — the NNVT 1600+ FOM autogated tube is in MX-11769 format and supports manual gain on the PVS-14R.

Can I see the tube datasheet before I buy?
Yes — email us to request datasheets before purchasing.

How fast does it ship?
Most orders ship within 1–2 business days.

This product is subject to U.S. export control laws. ITAR controlled. For sale to U.S. persons only.
