Description

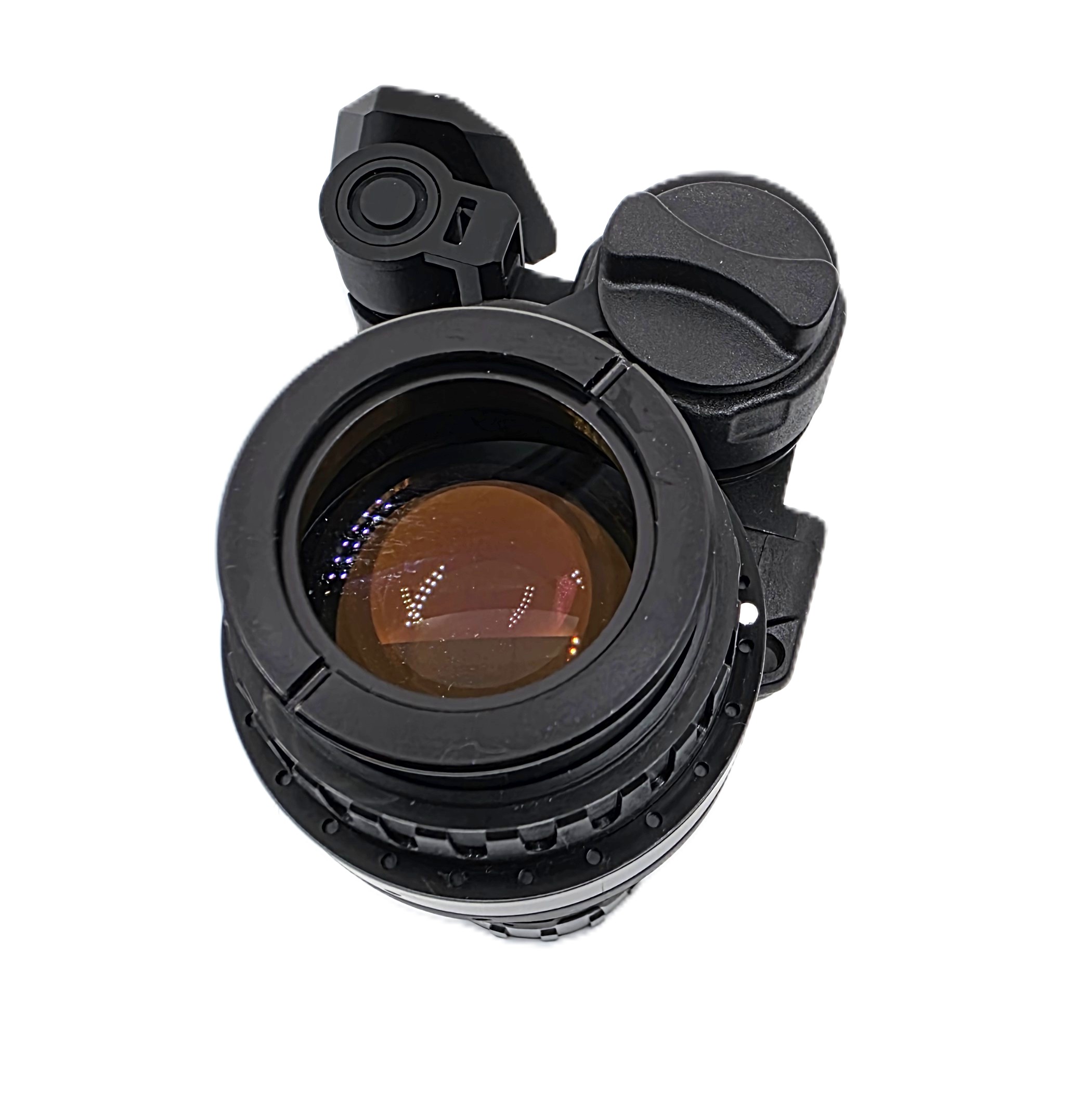

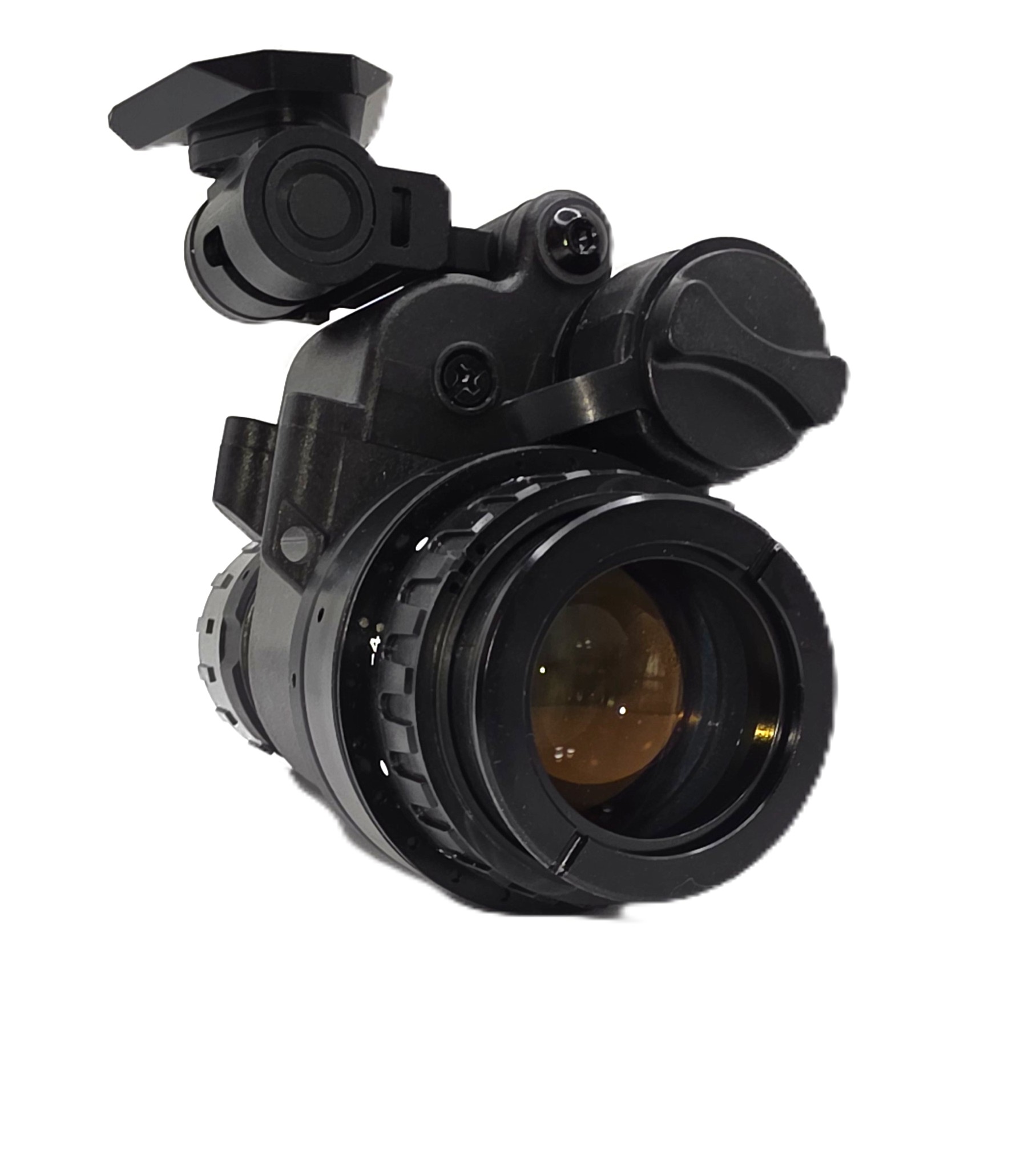

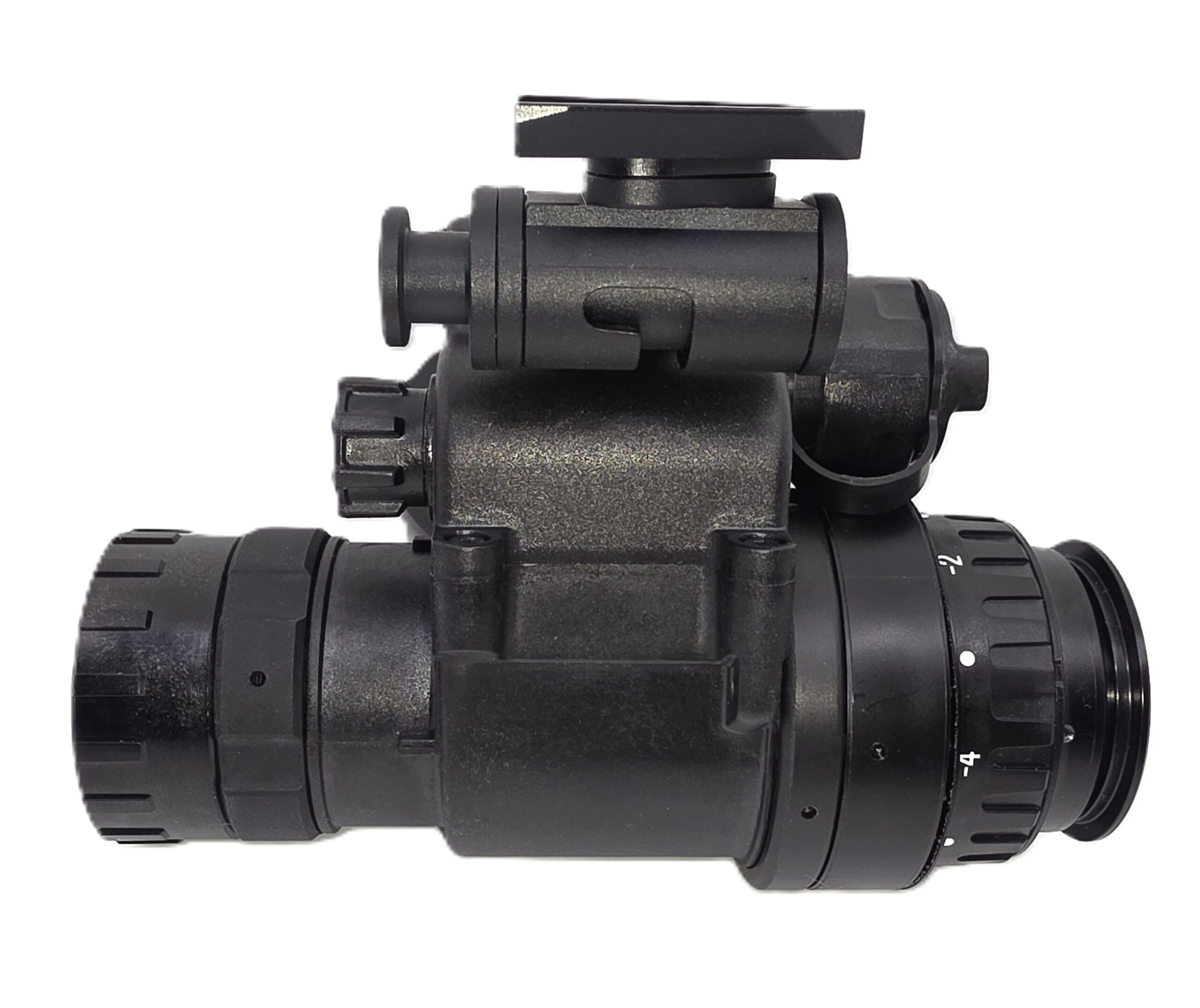

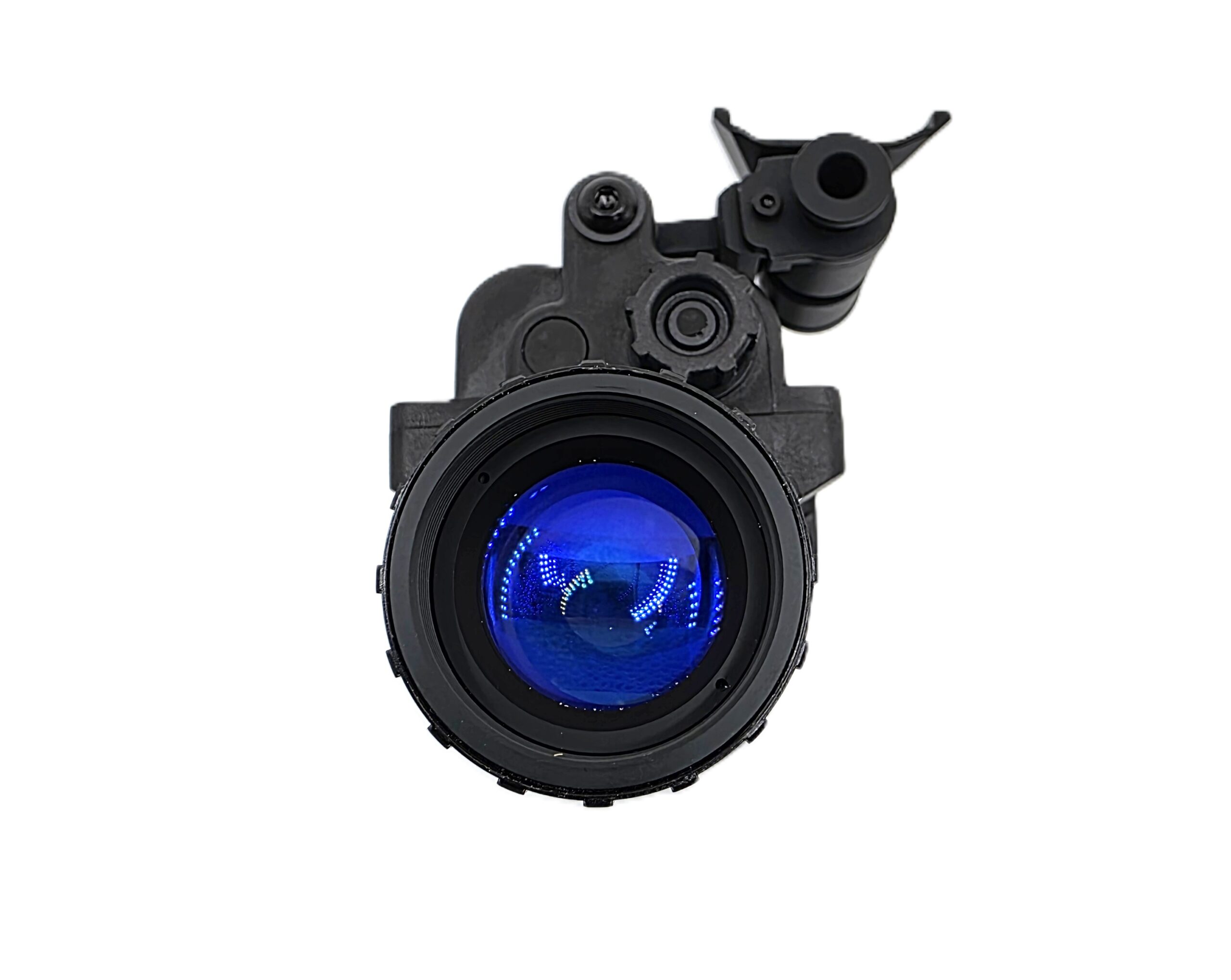

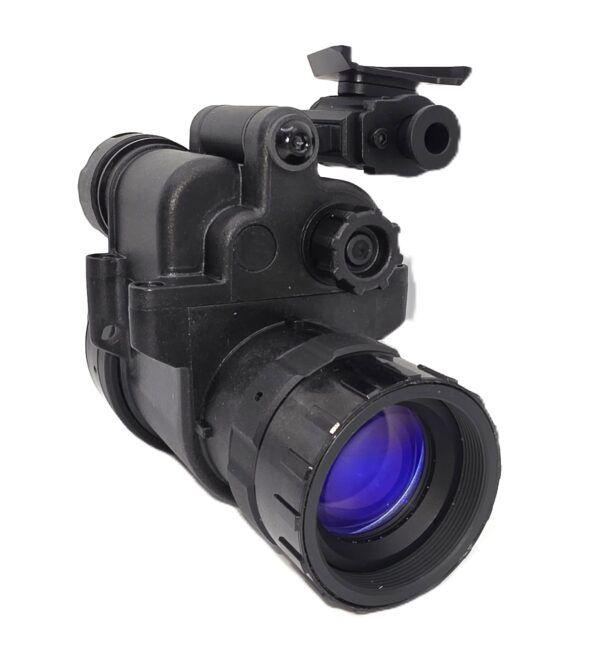

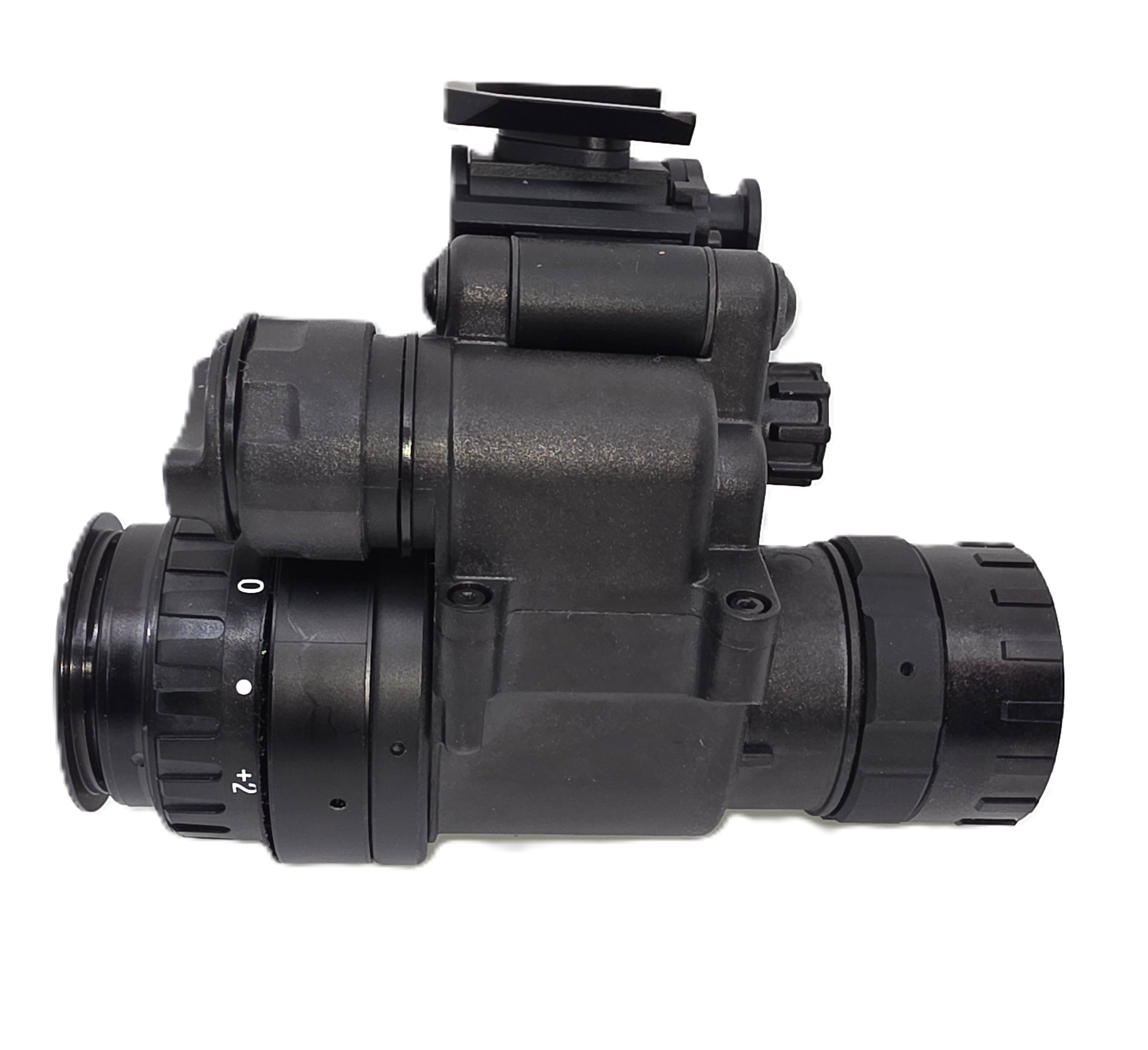

OP14 Night Vision Monocular — Complete Unit

The OP14 is a lightweight polymer monocular with an integrated dual-articulating aluminum dovetail arm — no separate J-arm required. Manual gain, auto-shutoff when stowed, gain memory, 2-minute inactivity timeout. IP68. CR123A ~25hrs. Fully assembled and ready for field use. Assembled in Canada.

---

Key Features

Integrated dual-articulating dovetail arm

Central push-button swings the arm left or right for ambidextrous use. Friction hinge for stow or flip-up. Mounts directly to any standard dovetail helmet mount — no separate J-arm needed.

Manual gain + gain memory

Full manual gain control compatible with Elbit, L3Harris, Photonis, and NNVT tubes. Remembers your gain setting after power cycles.

Auto-shutoff + inactivity timeout

Powers off when articulated past vertical. 2-minute inactivity timeout. Both toggleable on/off.

Featherweight

~110g housing only. ~250g with RPO 3.0 lenses — substantially lighter than a milspec PVS-14 with dovetail arm (~380g).

---

Tube Options

Elbit XLSH White Phosphor — Gen 3, U.S.-made

Thin-filmed autogated. White phosphor. 10-year warranty.

Elbit XLSH Green Phosphor — Gen 3, U.S.-made

Thin-filmed autogated. Green phosphor. 10-year warranty.

Elbit PH White Phosphor — Gen 3, U.S.-made

Thin-filmed autogated. White phosphor. 10-year warranty.

NNVT 1600+ FOM — Gen 2+ Autogated White Phosphor

NNVT autogated white phosphor, 1600+ FOM. 2-year warranty.

---

Specs at a Glance

Housing	Polymer body, aluminum dovetail arm
Weight	~110g housing; ~250g with RPO 3.0 lenses (no battery)
Power	CR123A (~25 hrs); 1.2–5V operating range
FOV	40°
Magnification	1×
IR illuminator	Onboard
Water	IP68 (2m/1hr)
Temp	-51°C to +49°C
Standard	MIL-STD-810G transit drop
Assembly	Housing assembled in Canada; built with tube and optics by Superior Tactical

Warranty

U.S. Gen 3 tubes (Elbit/L3Harris): 10-year. NNVT: 2-year.

ITAR controlled. For sale to U.S. persons only.

Common Questions

Does this come with a warranty?
Gen 3 night vision monoculars sold by Superior Tactical carry a 10-year warranty against manufacturing defects in the image intensifier tube. Gen 2+ units carry a 2-year warranty. Contact us at (888) 330-7057 for details.

Can I use this for hunting?
Yes, night vision monoculars are legal for hunting in most U.S. states, though some states restrict their use for certain species. Check your local regulations before use. This device is for U.S. persons only.

Does this work weapon mounted?
The AN/PVS-14 can be configured as a weapon-mounted device with the appropriate adapter. Contact us at (888) 330-7057 for mounting options compatible with your setup.
