Description

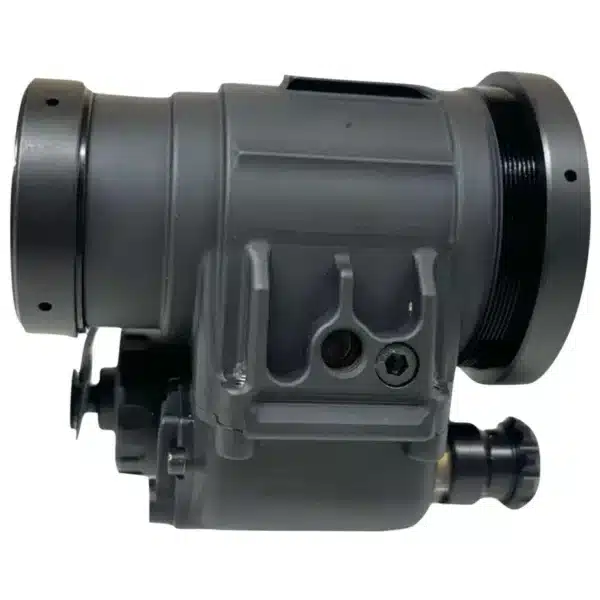

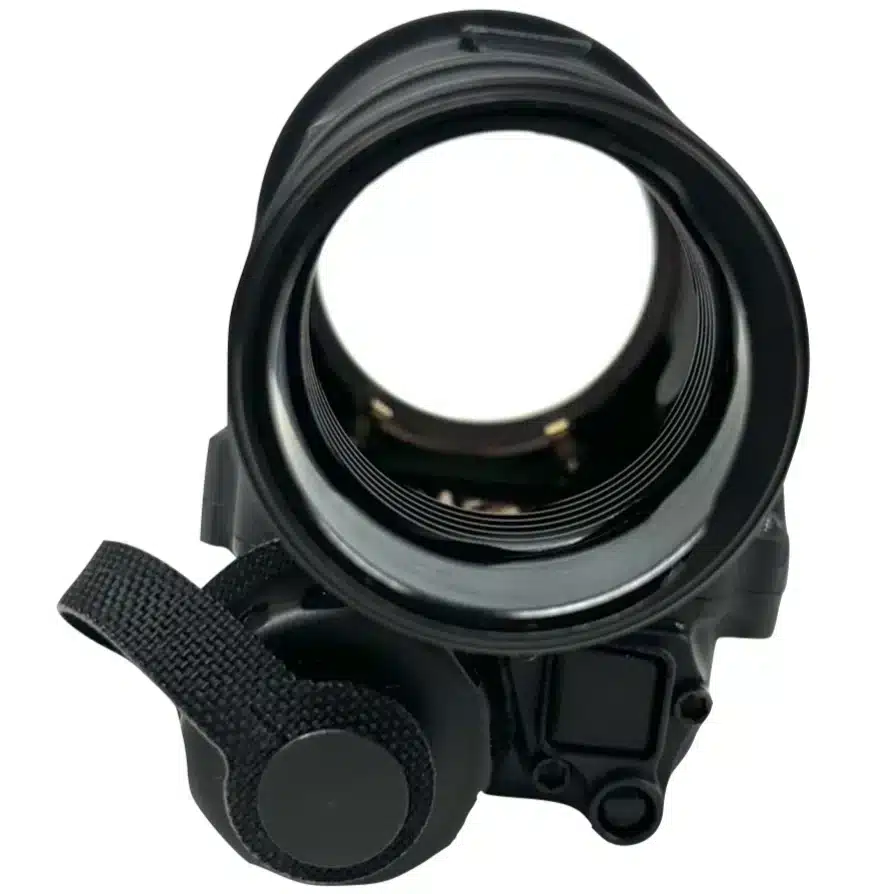

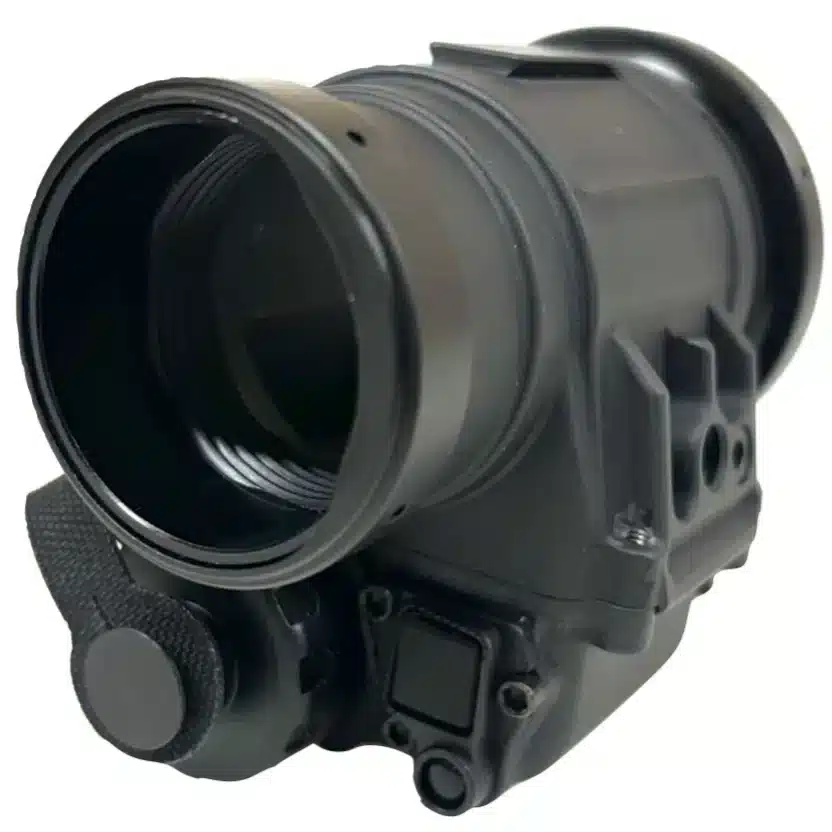

AB Night Vision RVM-14 Housing — Builder Kit

The RVM-14 from AB Night Vision is a billet 7075 aluminum monocular housing with manual gain control (MX-11769 format), built-in IR illuminator, ¼-20 side mount thread, and a small dovetail on top for bridge or arm mounting. 300g, CR123 ~75 hours. Lifetime housing warranty.

This is a housing-only kit for builders who want to assemble their own night vision system. Tubes are not included — you source your own tubes and bring them to us for assembly, or install them yourself. Optics (lenses) are available as a selection at checkout.

Key Specs

Manufacturer	AB Night Vision (USA)
Material	Billet 7075 aluminum, black anodized
Weight	300g
Power	CR123 (~75 hrs)
Gain	Manual gain via rotary switch (MX-11769 format)
IR illuminator	Built-in, push-button with protective fence
Side mount	¼-20 thread for accessories/mounts
Top dovetail	Accepts RVM-14 Arm (monocular) or RVM-14 Bridge (binocular)
Housing warranty	Lifetime

Choosing Your Tube

Elbit XLSH White Phosphor — Gen 3, U.S.-made

Thin-filmed autogated. White phosphor. 10-year warranty.

Elbit XLSH Green Phosphor — Gen 3, U.S.-made

Thin-filmed autogated. Green phosphor. 10-year warranty.

Elbit PH White Phosphor — Gen 3, U.S.-made

Thin-filmed autogated. White phosphor. 10-year warranty.

NNVT 1600+ FOM — Gen 2+ Autogated White Phosphor

NNVT autogated white phosphor, 1600+ FOM. 2-year warranty.

Warranty

Housing: lifetime. U.S. Gen 3 tubes: 10-year. NNVT: 2-year.

ITAR controlled. For sale to U.S. persons only.
