Noisefighters Panobridge M1 — Dual PVS-14 Bridge with Adjustable Field of View

The Panobridge M1 is Noisefighters’ patented all-metal dual monocular bridge with Adjustable Field of View (AFOV) — U.S. Patent 12,114,723. 1.9 oz total, entirely 7075-T6 aluminum hardcoat anodized. Pan angle adjustable on the fly with individual locking per side. Panoramic FOV up to ~50% wider than standard (~55°+). Individual pod articulation. IPD slider. Complete system approximately 23 oz with two milspec PVS-14s. FBI tactical teams fielded. 2m drop tested on concrete. Lifetime transferable warranty. Made in the USA by a USMC combat veteran-owned company.

Requires a dovetail helmet mount. No auto-shutoff integrated. Collimation may be required — see note below.

---

Key Features

Patented Adjustable Field of View (AFOV)

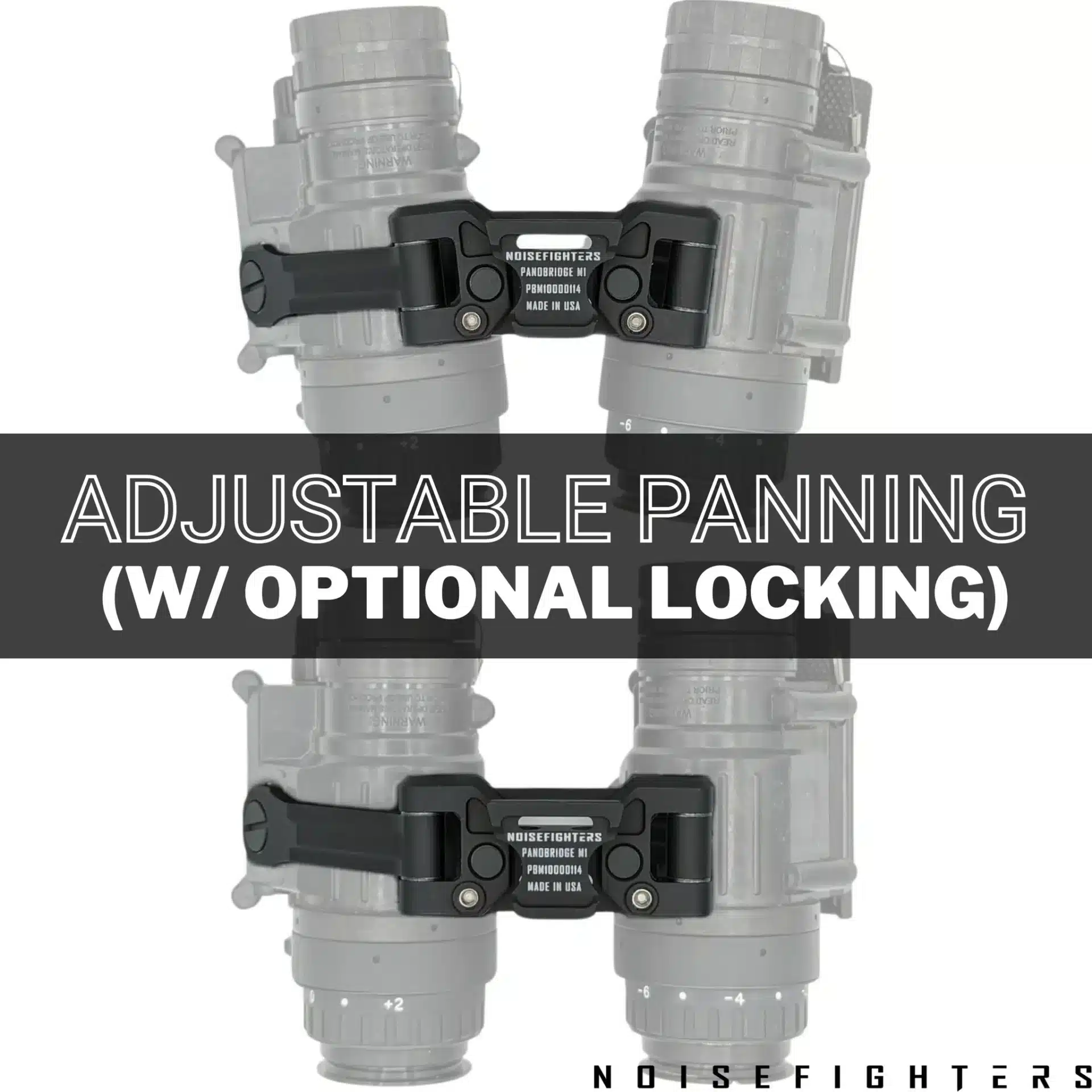

The M1’s defining feature. Pan the monoculars outward on the fly to expand the combined FOV up to approximately 55° or beyond — roughly 50% wider than a standard single-monocular 40° FOV. Lock each side independently at any pan angle. For those who need situational awareness over the widest possible arc, this is the only bridge mount that delivers it with on-the-fly adjustability.

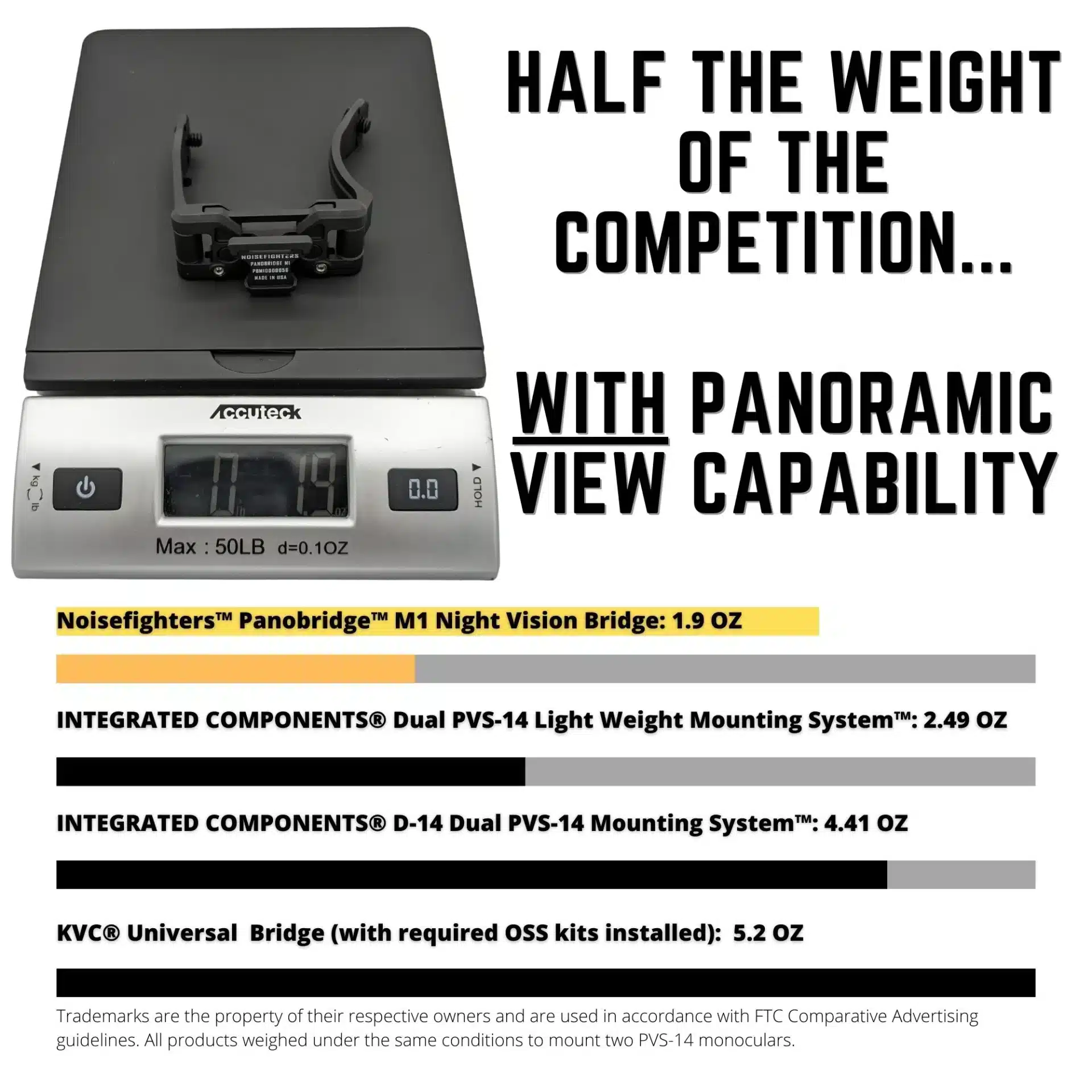

1.9 oz — same as a single polymer milspec J-arm

The entire bridge weighs no more than a single polymer J-arm. 7075-T6 aluminum throughout. Mod 1 (December 2025) update: lighter and more rigid center section, captivated locking screws so they cannot be accidentally lost.

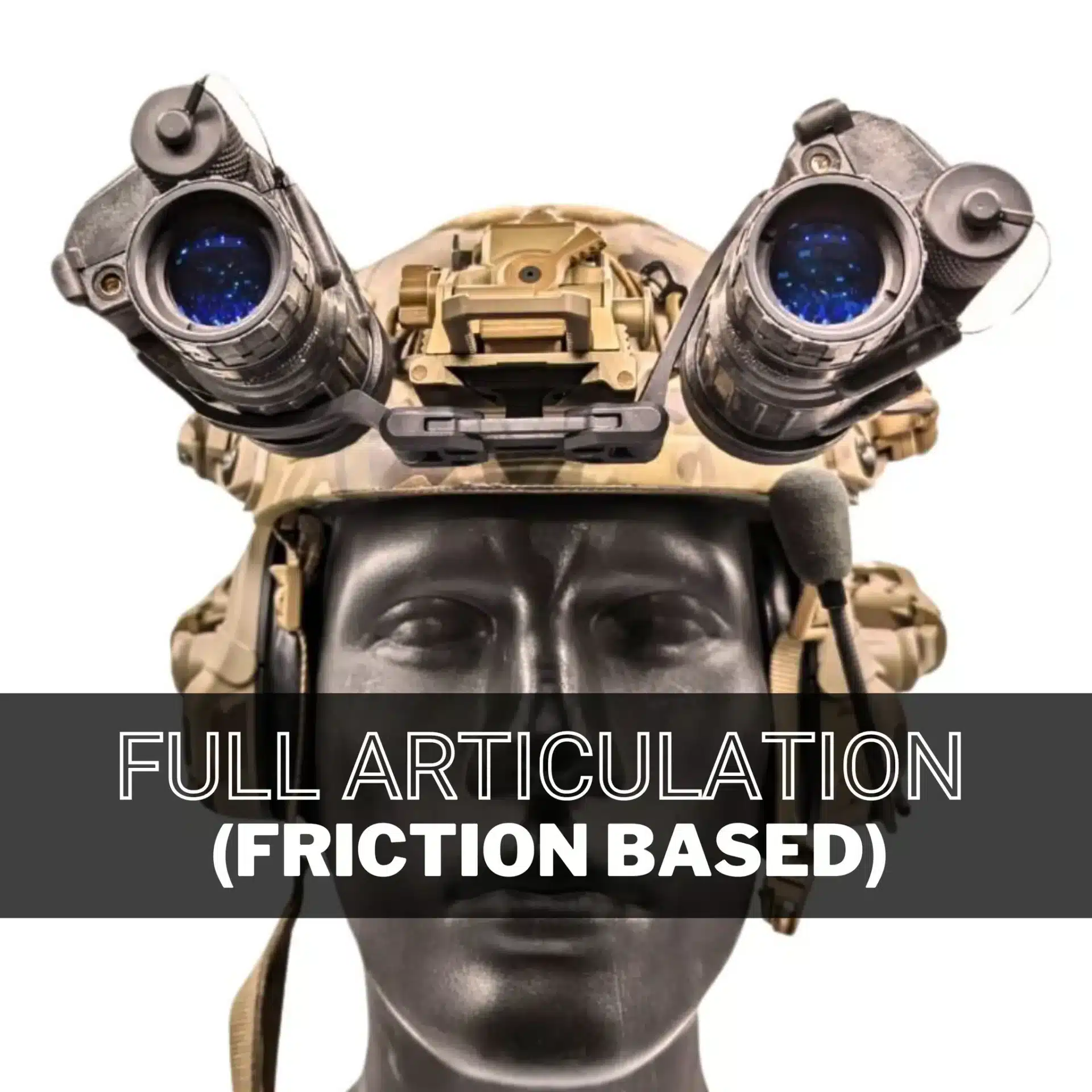

Individual pod articulation

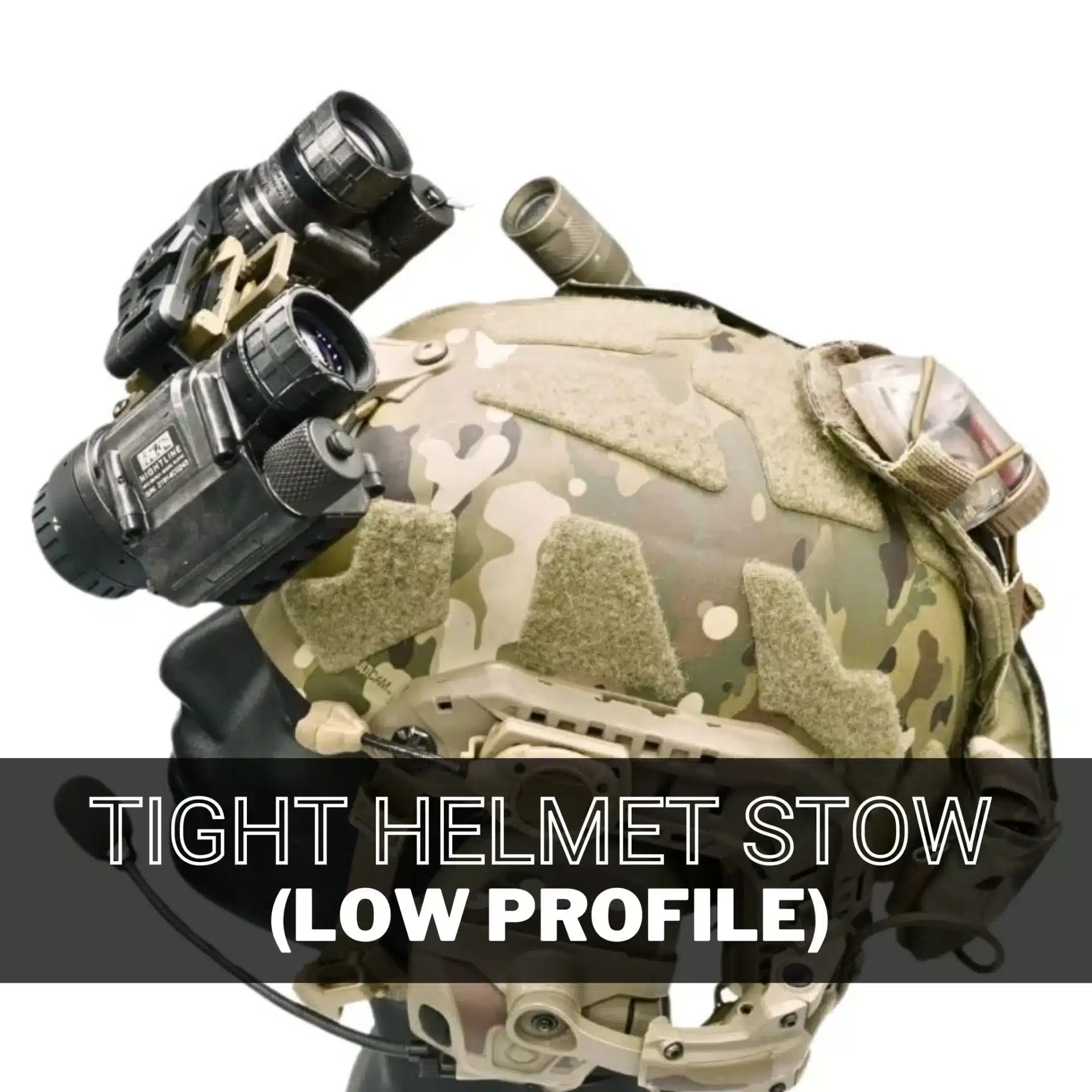

Each monocular swings up independently — run single tube for navigation, stow both tightly against the helmet, or run one eye thermal and one eye NV with optional adapters.

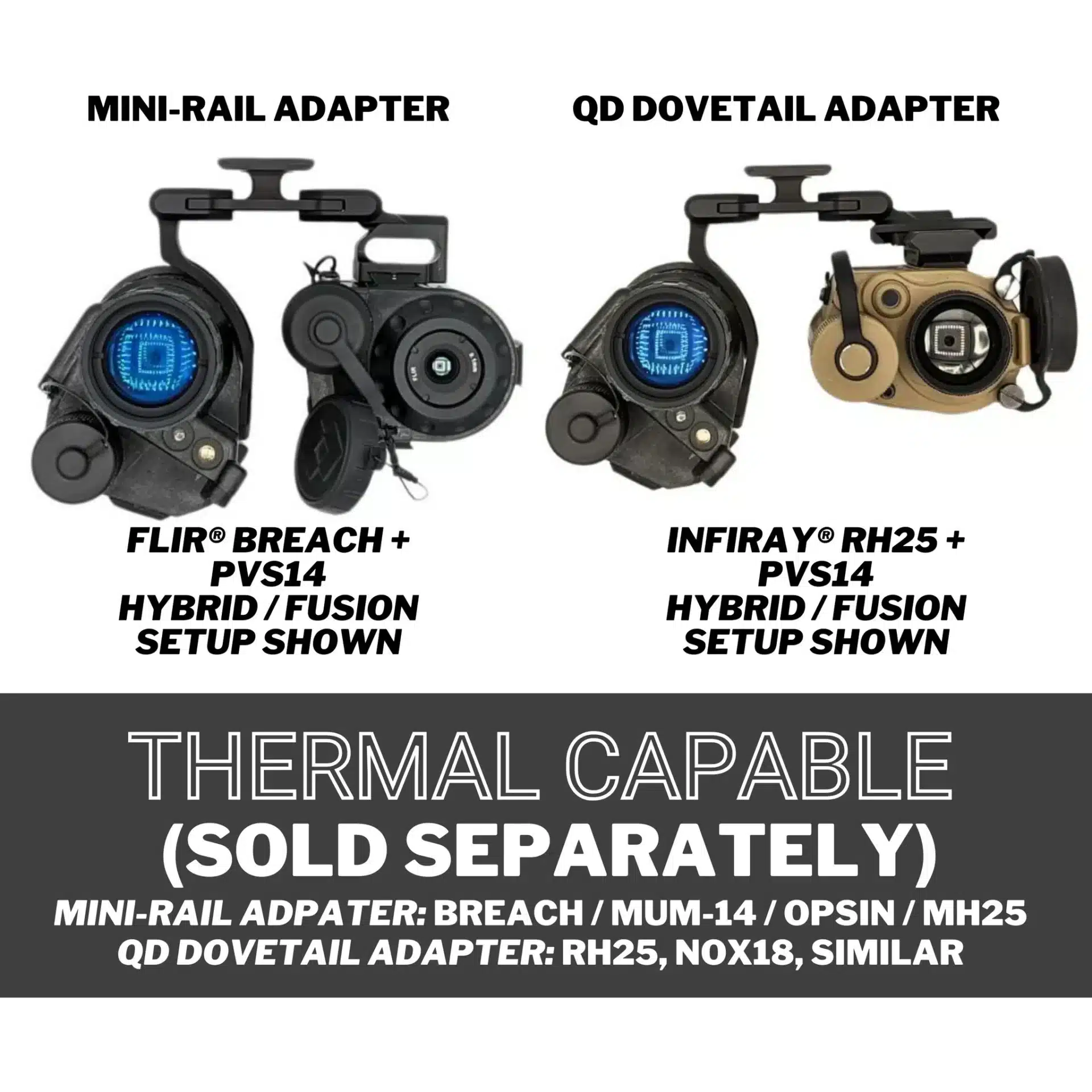

Thermal monocular compatibility

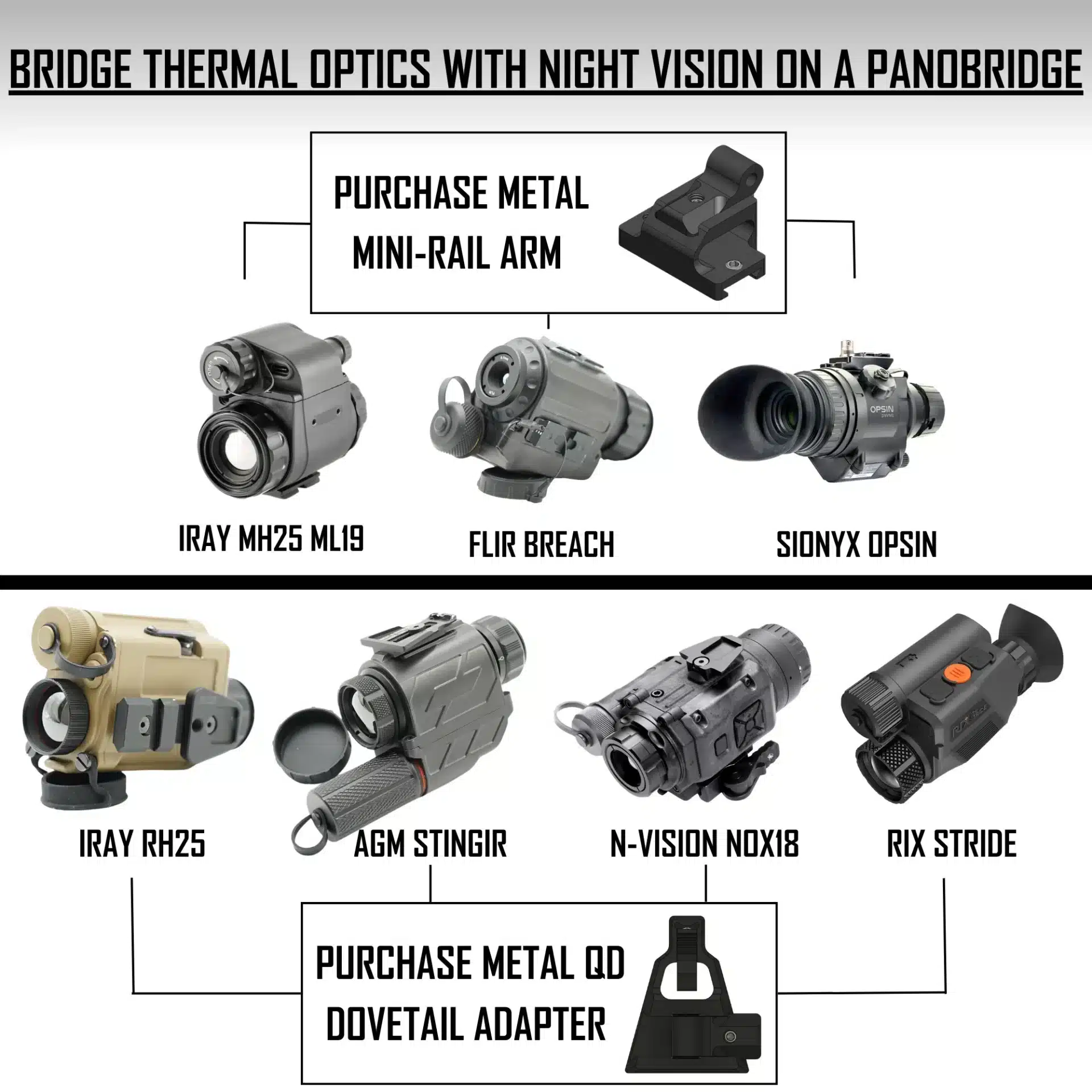

Accepts thermal monoculars on either side via optional QD dovetail adapter (InfiRay RH25, etc.) or mini-rail adapter (FLIR Breach, InfiRay MH-25 with mini-rail, etc.). Build a hybrid NV + thermal binocular.

Compatible monoculars

Milspec PVS-14, Photonis Vyper-14, AB Night Vision MOD3 (autogain only), Nocturn Industries Talon, LLI MH-14. Nocturn Tanto and AB RVM-14 via included adapter. Thermal adapters sold separately.

FBI tactical team fielded

Adopted by multiple FBI tactical teams and dozens of law enforcement agencies. 2m drop tested on concrete with monoculars attached.

Lifetime transferable warranty

No-questions-asked, transferable lifetime warranty.

---

Important Notes

Collimation: When two monoculars are bridged, images may not be perfectly aligned. Most users’ brains compensate without issue. At wider pan angles, collimation becomes more important. If eye strain develops after extended use, professional collimation is recommended — this does not require re-purging the monocular.

No auto-shutoff: Monoculars must be manually powered off when stowing or articulating up.

FOV limit: Beyond 55°, some lenses display color fringing. Beyond 60°, a non-visual zone develops directly in front of the user. Stay within 40–55° for most applications.

---

Specs at a Glance

Manufacturer	Noisefighters (USA)
Weight	1.9 oz (bridge only)
System weight	~23 oz with 2× milspec PVS-14 + lithium AA
Material	7075-T6 aluminum, hardcoat anodized throughout
Patent	U.S. Patent 12,114,723
AFOV range	40° standard → ~55°+ panoramic
Interface	Dovetail
Auto-shutoff	No
Warranty	Lifetime, transferable, no-questions-asked
Made in	USA

Common Questions

How do I know if this mount is compatible with my helmet?
Helmet mounts use different interface types — the most common are Wilcox dovetail, bayonet, and shroud-mounted. Check your helmet’s base plate before ordering. If you’re unsure, call us at (888) 330-7057 and we’ll help you confirm compatibility.

What night vision devices does this mount fit?
Most mounts in our catalog are designed for use with the AN/PVS-14 and standard 18mm NVG devices. Binocular and goggle mounts are designed for their respective devices. Check the product description for specific compatibility.

Do you ship mounts with hardware included?
Yes. All mounts ship with the hardware required for installation. Contact us if you have questions about specific installation requirements for your setup.
