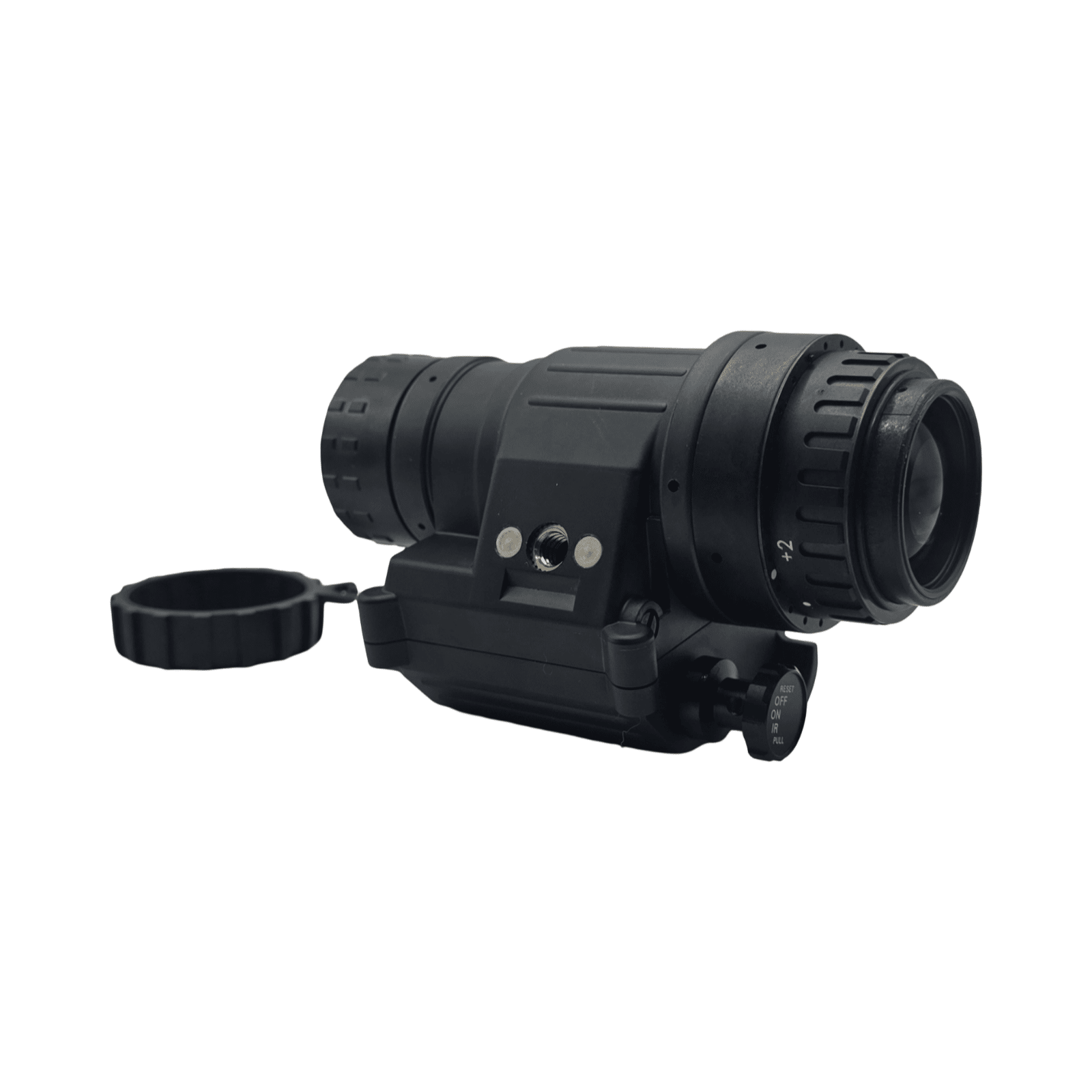

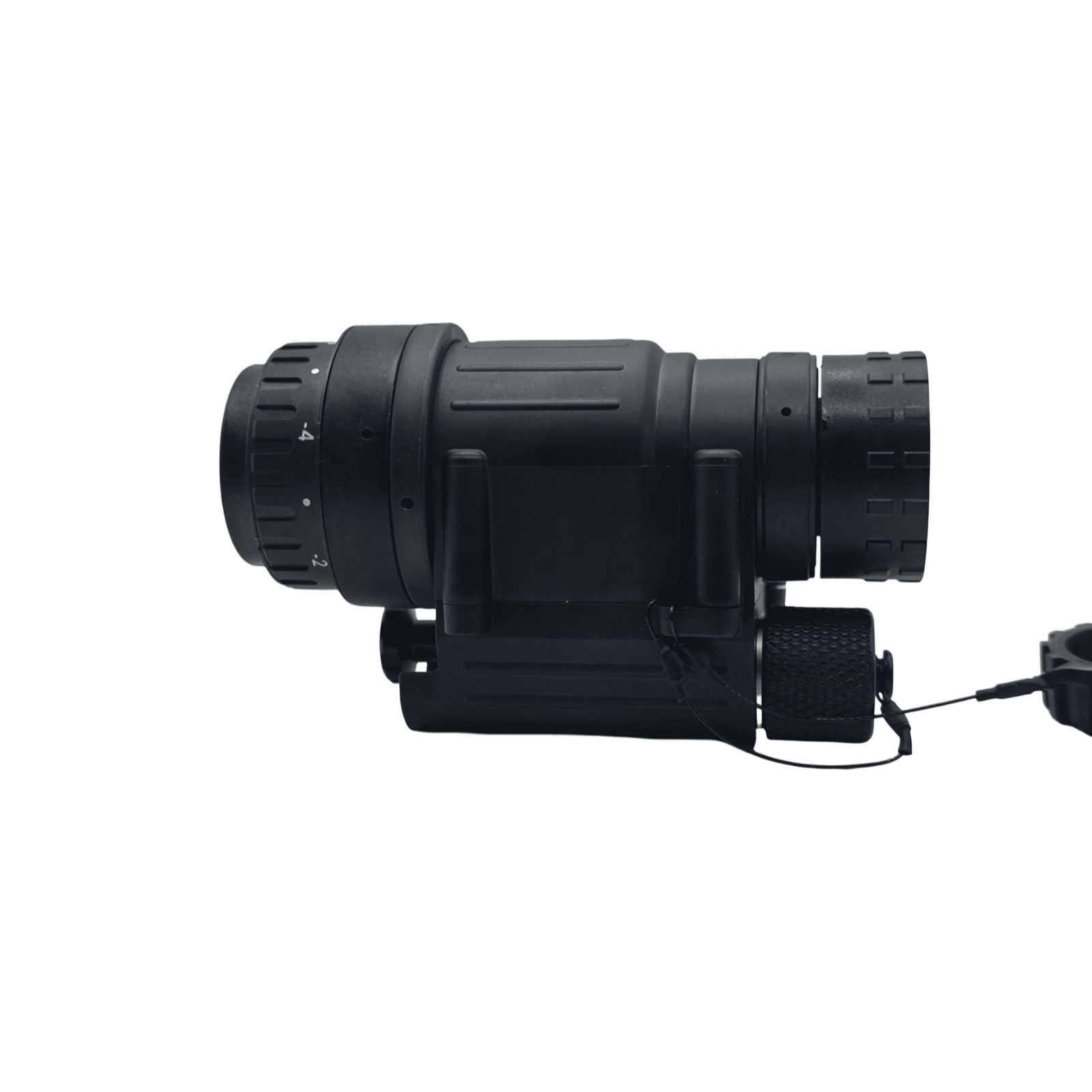

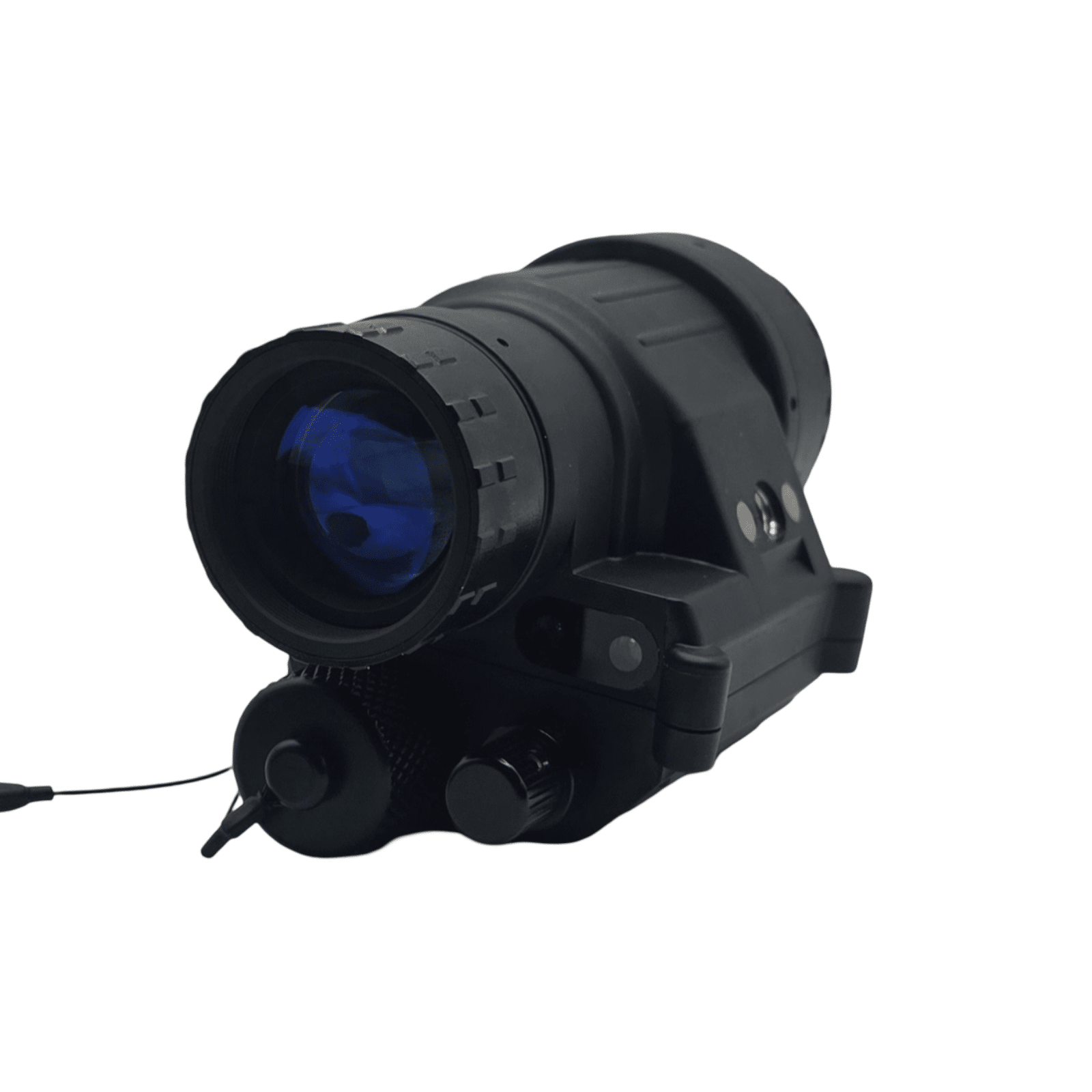

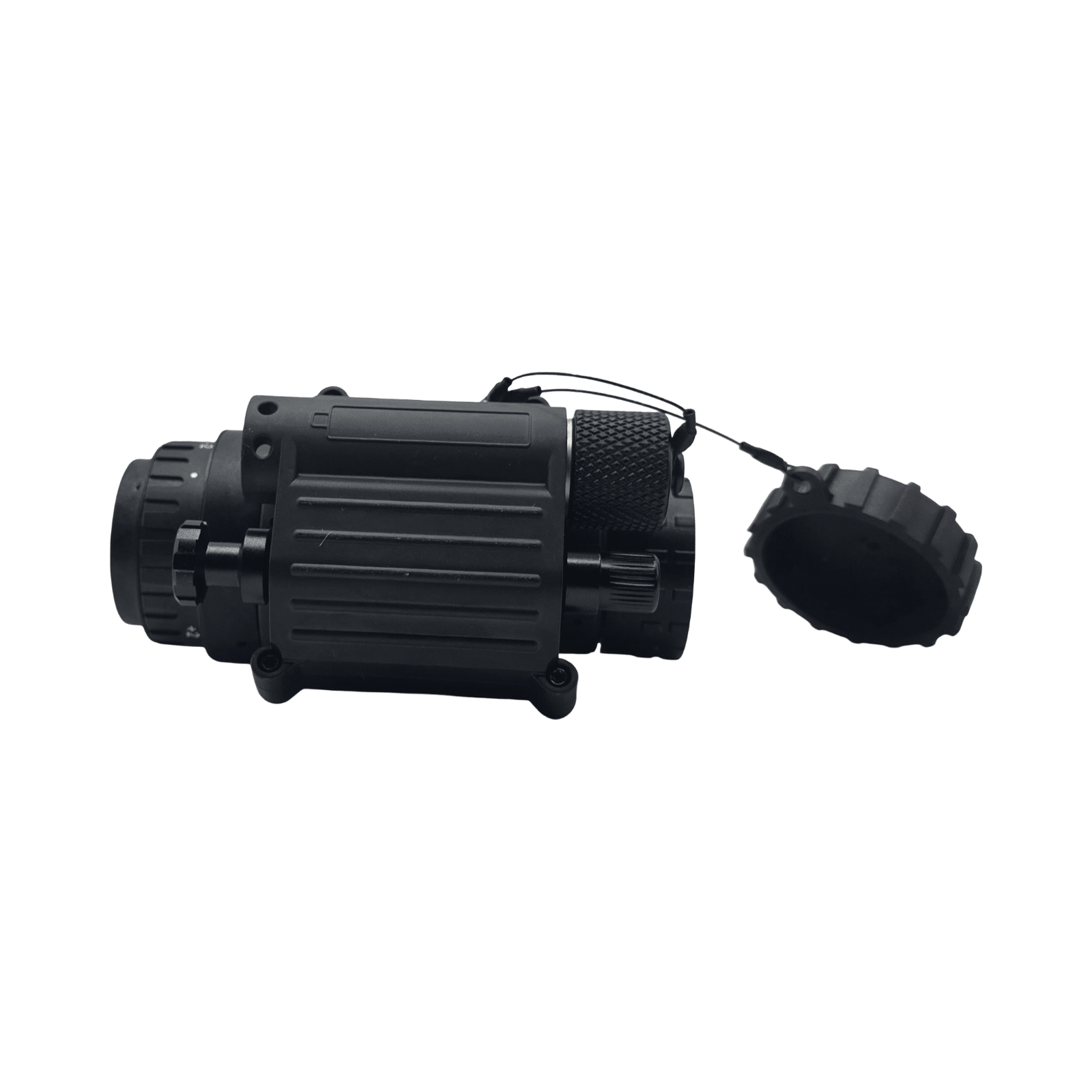

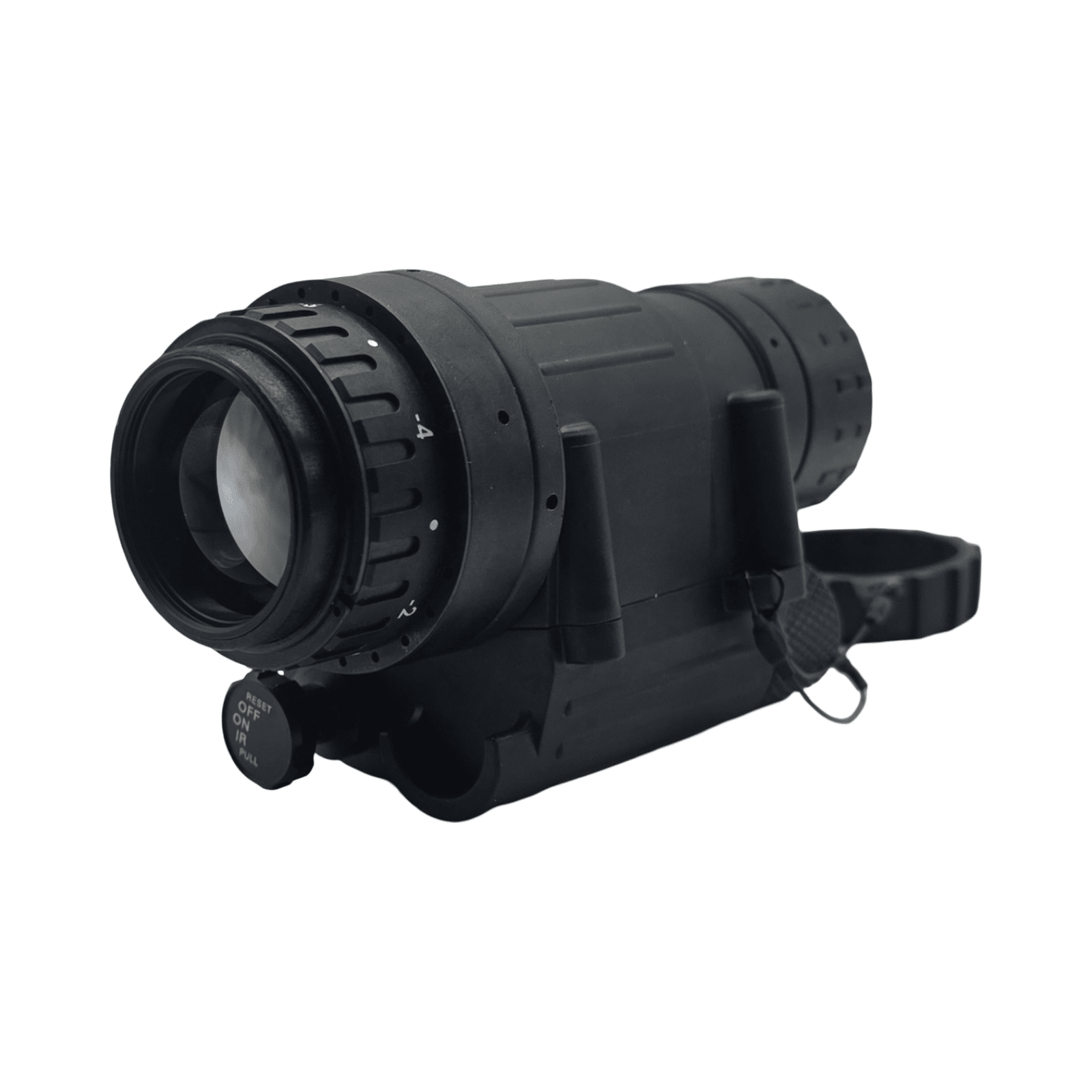

The PVS-14: America’s Most Trusted Night Vision Monocular

The AN/PVS-14 has been the U.S. military’s standard night vision monocular for over two decades. Used by Special Operations Forces, law enforcement units, and serious civilians who demand the same capability as the professionals they trained alongside — the PVS-14 isn’t a compromise. It’s the benchmark.

At Superior Tactical, we’ve been selling and servicing night vision for over a decade. We know these tubes, we stand behind them, and we’re here when you have questions.

This build pairs an Argus PVS-14 housing with Brightpath optics and the image intensifier tube of your choice — Gen 3 Elbit or Gen 2+ NNVT.

What’s in the Box

Every PVS-14 from Superior Tactical ships complete with the full military accessory kit:

• PVS-14 unit with your selected tube
• Head mount with brow pads
• Head mount adapter
• Sacrificial window (objective lens protection)
• Demist shield
• Eyecup
• Lens cap
• Neck cord
• Soft carry case
• Lens paper
• Military operator’s manual
• Tube datasheet — showing your specific tube’s actual performance specs

The Build: Argus Housing, Brightpath Optics

Argus PVS-14 Housing

Argus builds their PVS-14 to the standard military form factor, so it takes MX-10160 and MX-11769 format tubes and works with the full range of PVS-14 mounts, J-arms, and accessories you already own. The redesigned battery compartment lets you power the unit down while it is upright, and the housing mounts behind most collimating day optics — ACOG, Aimpoint, and EOTech — so it doubles as a short-range weapon sight. Argus builds to MIL-PRF-49324(CR), MIL-PRF-49427(CR), and MIL-STD-810G.

Brightpath Optics

The objective lens and eyepiece are Brightpath assemblies, built by the engineering team behind the original Qioptiq optics. Both are manufactured to MIL-L-49426 and MIL-L-49427 in lightweight ULTEM housings and multi-coated on every air-to-glass surface. Looking for Noctis/Carson optics instead? We build that configuration too — see our Noctis/Carson PVS-14.

Choosing Your Tube — Plain English Guide

This is where most buyers get stuck. Here’s what you actually need to know:

Why Elbit Systems of America

Elbit Systems of America is one of the two primary manufacturers of U.S. Gen 3 image intensifier tubes. Their filmed tubes are known for excellent contrast and a clean, low-noise viewing experience, and they represent the strongest value in Gen 3 white phosphor today. Every tube in this build is hand-inspected, and comes with its own datasheet.

Want an L3Harris unfilmed tube instead — 18UM, 20UA, or 24UA? Those are available on our Noctis/Carson PVS-14.

What is FOM?

FOM stands for Figure of Merit — a single number calculated by multiplying a tube’s resolution (line pairs per mm) by its signal-to-noise ratio. It’s a useful shorthand but not the whole story. Every tube is different. A higher FOM generally indicates better overall performance, but two tubes with the same FOM can look different in the field.

What is a Z1 Spot?

The Z1 zone is the center area of the tube image — the most critical viewing area. A tube listed as “with Z1 spot” contains a small cosmetic blemish in this zone, but it will not exceed .003 inches in size. Many experienced users find Z1 spots are barely noticeable in real-world use. Tubes listed “without Z1 spot” or “No Spots on Datasheet” have no cosmetic blemishes in the critical viewing area.

2376+ FOM — What Does That Mean?

This designates tubes that have tested at 2376 FOM or higher on their datasheet. These are high-performing tubes that have exceeded a specific performance threshold. For buyers who want documented high performance, this is a strong option.

Hand Select — See Your Tube Before You Buy

Not sure which tube is right for you? We offer hand-select service on many of our tubes.

Email us to request datasheets on available tubes before you commit to a purchase. You’ll see the actual measured specs — FOM, signal-to-noise ratio, resolution, EBI, and halo — for the specific tube going into your unit.

Call (888) 330-7057 to speak with someone who actually knows night vision. We have more tubes available than what’s listed in the dropdown — if you have specific requirements, let us know.

Specs at a Glance

Two Ways to Use the PVS-14

Helmet Mounted — hands-free operation for navigation, observation, and extended wear. Compatible with standard PASGT, MICH, and FAST helmet mounting systems using the included head mount adapter.

Handheld — quick scan capability without mounting hardware. Useful for vehicle operations, wildlife observation, security monitoring, and any situation where helmet mounting isn’t practical.

Who Buys the PVS-14 from Superior Tactical

Most of our PVS-14 customers are former military or law enforcement — people who used this exact platform in service and want the same capability at home. They know what they’re looking at on a datasheet, they know what questions to ask, and they don’t want to be sold something they don’t need.

We built our business around that customer. No upselling, straight answers, and someone who picks up the phone.

Warranty

Warranty coverage depends on the tube you select. Gen 3 Elbit builds are backed by our 10-year warranty covering the full unit — housing, optics, electronics, and tube. The Gen 2+ NNVT build is backed by a 2-year warranty on the same components. The warranty does not cover accidental damage or damage resulting from misuse.

We also offer in-house repairs with free diagnostic. If something goes wrong, you’re not shipping your unit to a manufacturer overseas — you’re calling us.

Common Questions

Do you have tube options not listed in the dropdown? Yes. Call (888) 330-7057 or email sales@superiortac.com for our current inventory. Tube availability changes frequently and we carry more options than the website reflects.

Can I see the datasheet before I buy? Yes — email us to request datasheets on specific tubes before purchasing. Hand-select means you see the actual measured specs for your tube.

How fast does it ship? Most orders ship within 1–2 business days.

What if I’m new to night vision and don’t know where to start? Call us. We’ve been doing this for over a decade and we’ll point you in the right direction without pushing you toward something you don’t need.

Who Uses the AN/PVS-14

The AN/PVS-14 is the standard night vision device issued across U.S. military and law enforcement units. It is designed for use as a head-mounted or helmet mount night vision monocular, and can also be configured as a weapon mounted optic with the appropriate adapter. The heart of the unit is the image intensifier tube — auto gated to handle transitions between dark and lit environments without blooming. Whether you’re a veteran looking for the same night vision devices you trained on, a law enforcement professional, or a civilian who demands military-grade capability, the PVS-14 is the benchmark everything else is measured against.

The PVS-14 is a controlled technology subject to U.S. export control laws. By purchasing, you acknowledge compliance with applicable ITAR and EAR regulations. For sale to U.S. persons only.
