Description

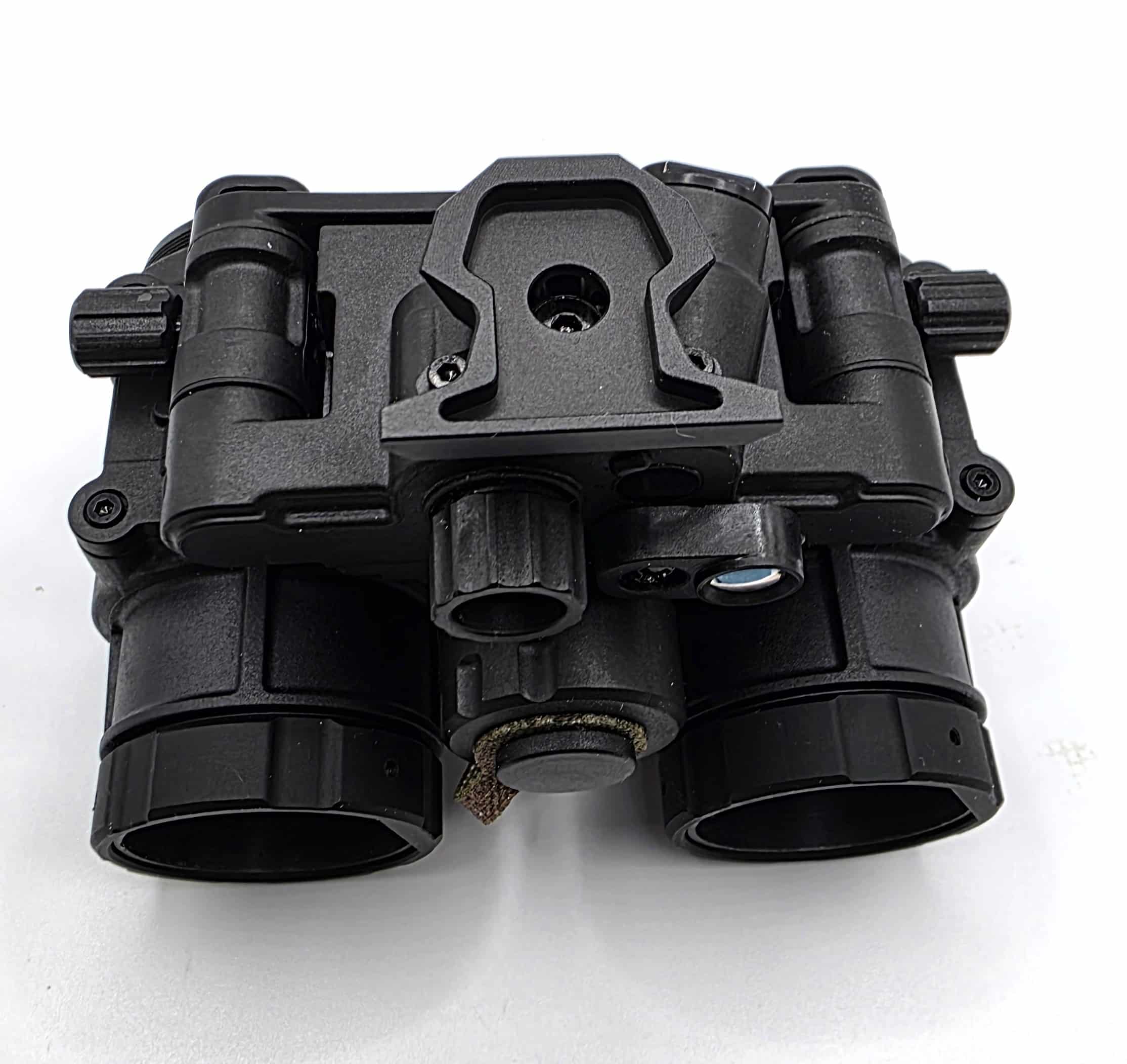

Aeon Tac ANVB — Articulating Binocular Housing (Housing Only)

The ANVB housing from Aeon Tac — the same platform as our complete ANVB unit, sold without tubes or optics for builders. Fiber-reinforced skeletonized polymer. Manual gain, dual-focus IR, independent pod shutoff, programmable auto-stow shutoff, IPD stops, Fischer external battery port. 5-year warranty including accidental damage. Requires MX-11769 format tubes for manual gain.

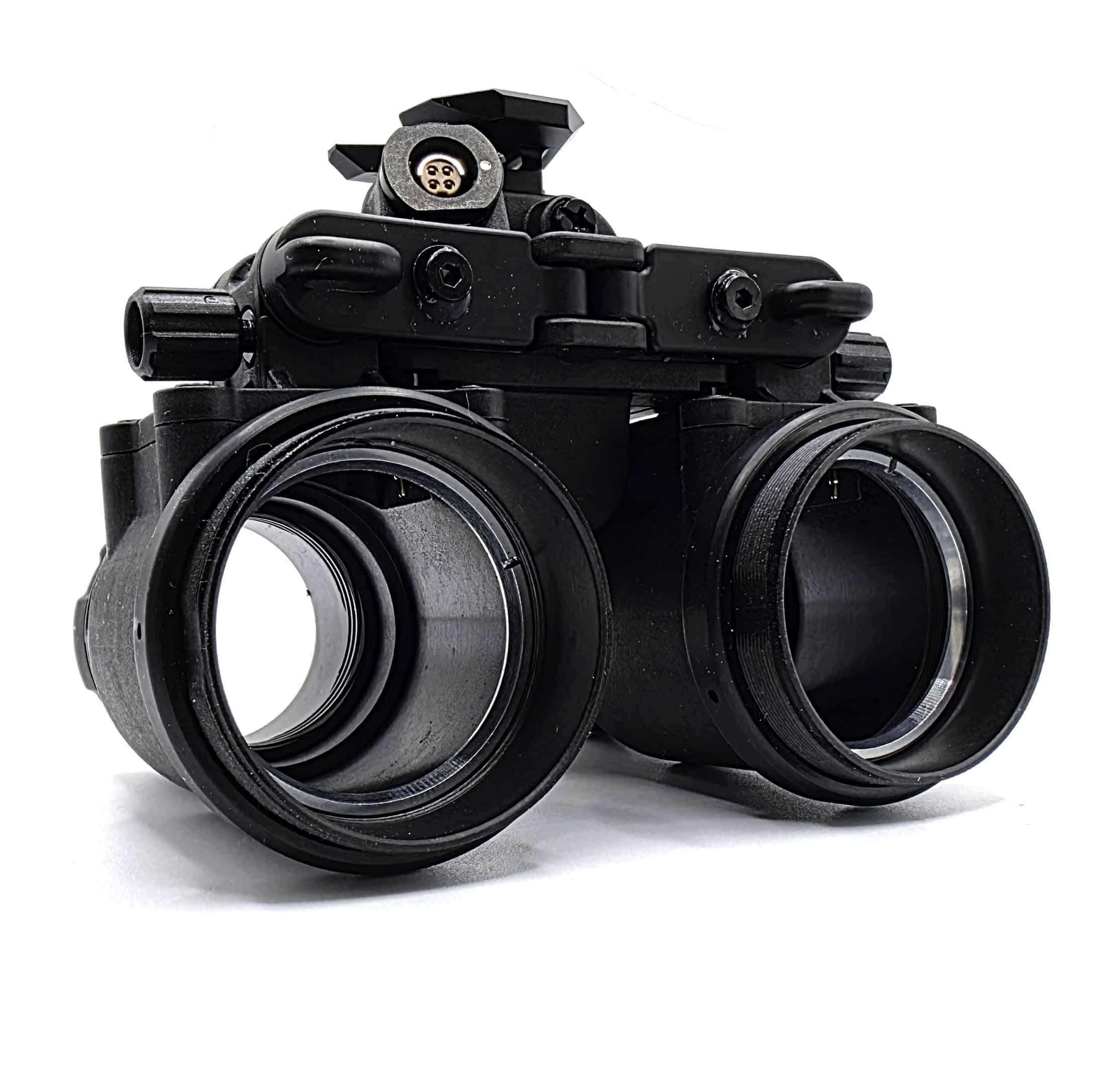

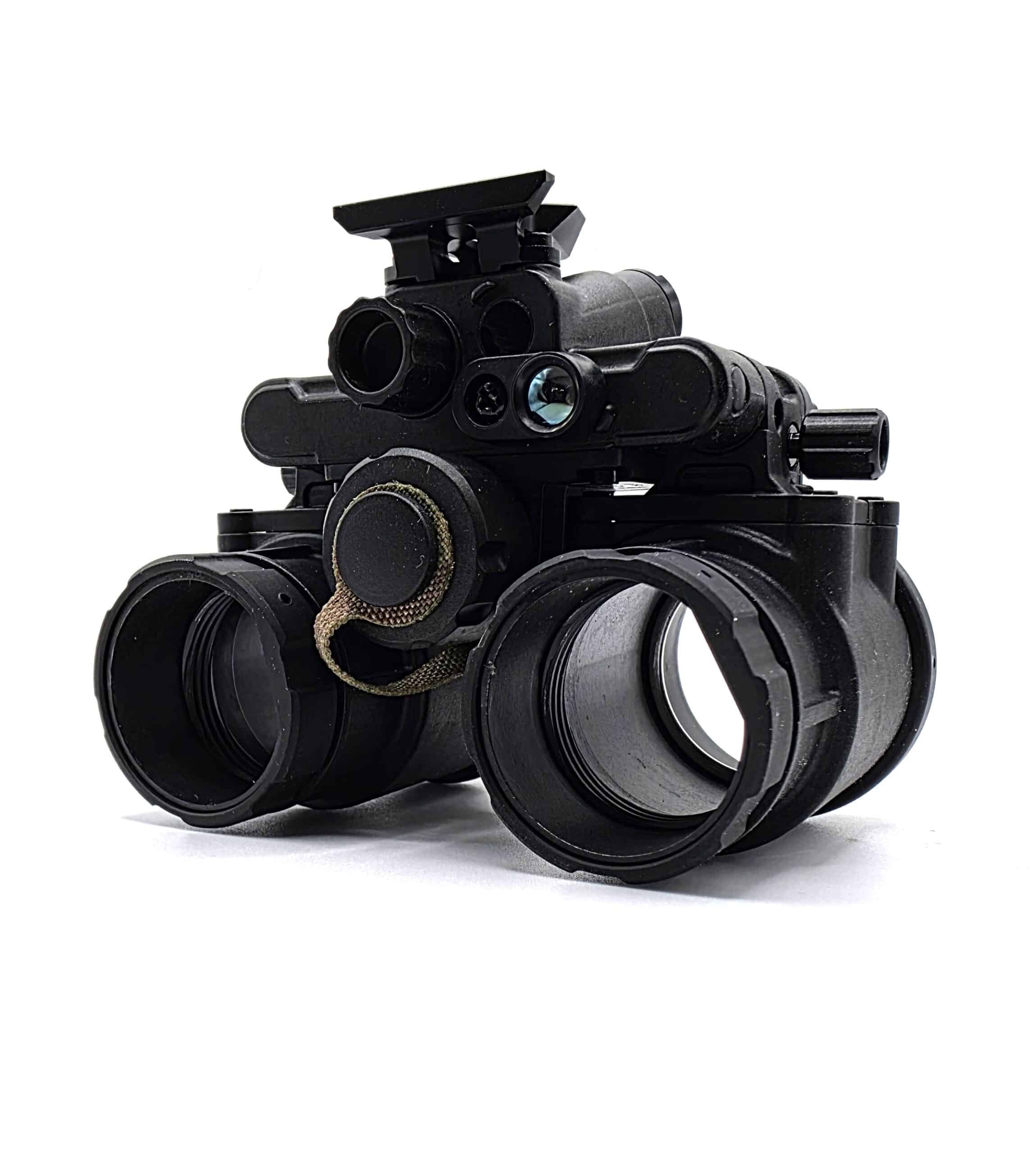

This listing is housing only. Tubes and optics are not included.

---

Housing Features

Fiber-reinforced skeletonized polymer

Lightweight and durable. Skeletonized design reduces overall system weight without sacrificing structural integrity.

Manual gain via rotary switch

Single rotary knob controls both power and gain. Turn to power on, keep rotating to dial brightness down. Requires MX-11769 format tubes — MX-10160 tubes are compatible but gain function is not available.

Independent pod shutoff

Each pod powers off automatically when rotated up — eliminating helmet glow and protecting tubes from light exposure.

Programmable auto-stow shutoff

System powers off when flipped to stowed position, powers back on when deployed. Toggleable — on or off per user preference.

Dual-focus IR illuminator

Built-in IR with flood and spot modes. Activated with a double-press of the power switch.

IPD stops included

Pods return to the same position every time.

CR123A + Fischer external port

Onboard CR123A with Fischer port for external battery pack.

5-year warranty including accidental damage

Aeon Tac covers the housing for 5 years including accidental damage — applies to the housing only, not tubes or optics.

---

Compatibility

Tubes: MX-11769 (manual gain supported) or MX-10160 (no gain function)
Optics: PVS-14 compatible eyepiece and objective

---

Specs at a Glance

Housing	Fiber-reinforced skeletonized polymer
Magnification	1x
FOV	40°
Focus range	9.8″ to infinity
Diopter	-6 to +2
Power	CR123A (~25 hrs) + Fischer external port
Weight	189g housing only
Water	IPX7
Standard	Exceeds MIL-STD-810G
Tube format	MX-11769 (manual gain) / MX-10160 (no gain function)
Optics	PVS-14 compatible

---

Warranty

Housing: 5-year warranty including accidental damage from Aeon Tac. Does not cover image intensifier tubes or optics.

---

Common Questions

Do I need MX-11769 tubes for manual gain?
Yes — manual gain requires MX-11769 format. MX-10160 tubes will work in the housing but the gain knob will have no function.

What optics are compatible?
Standard PVS-14 style eyepiece and objective. RPO 3.0 ultralight and Boomslang 50° FOV optics are also compatible.

This product is subject to U.S. export control laws. ITAR controlled. For sale to U.S. persons only.
