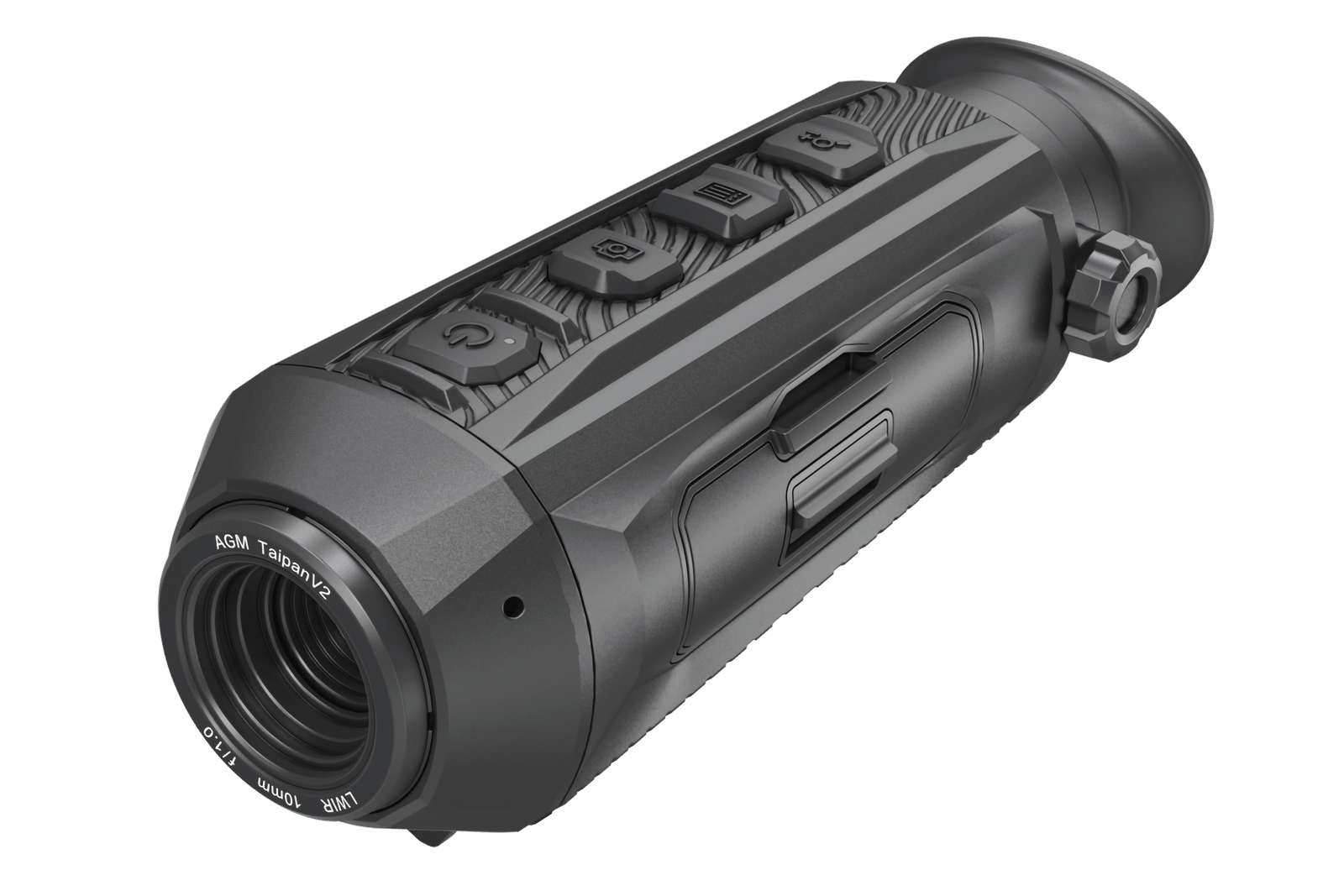

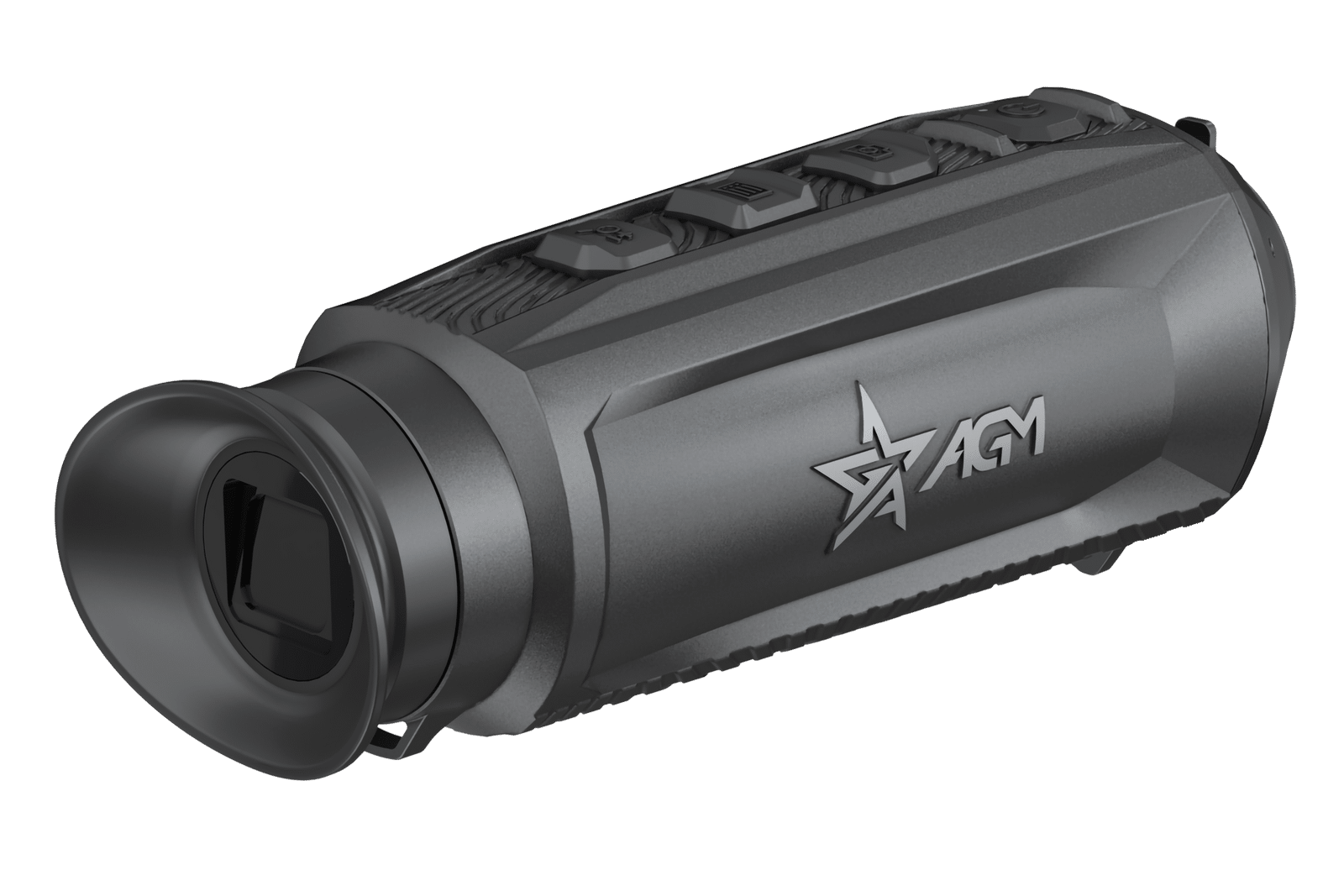

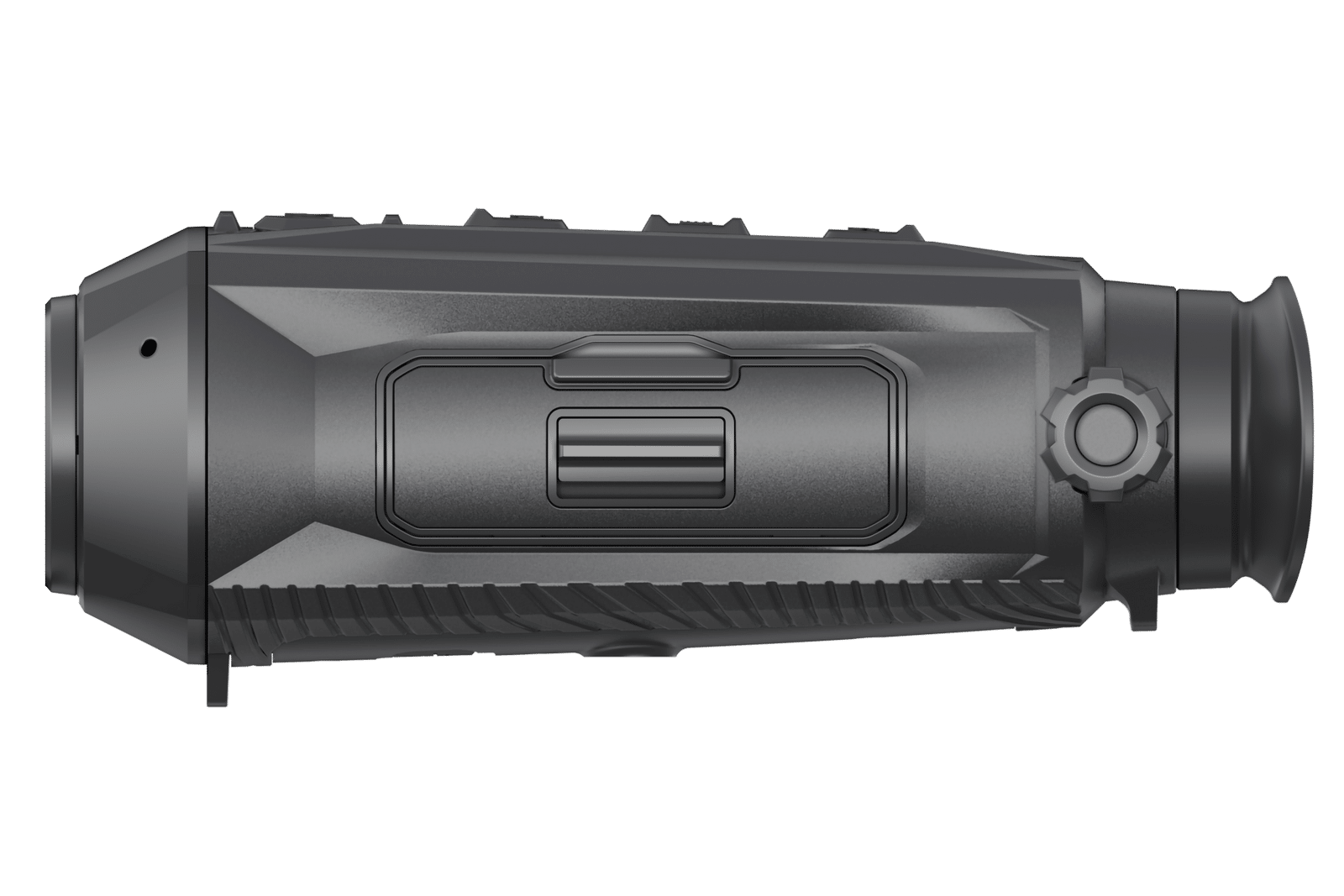

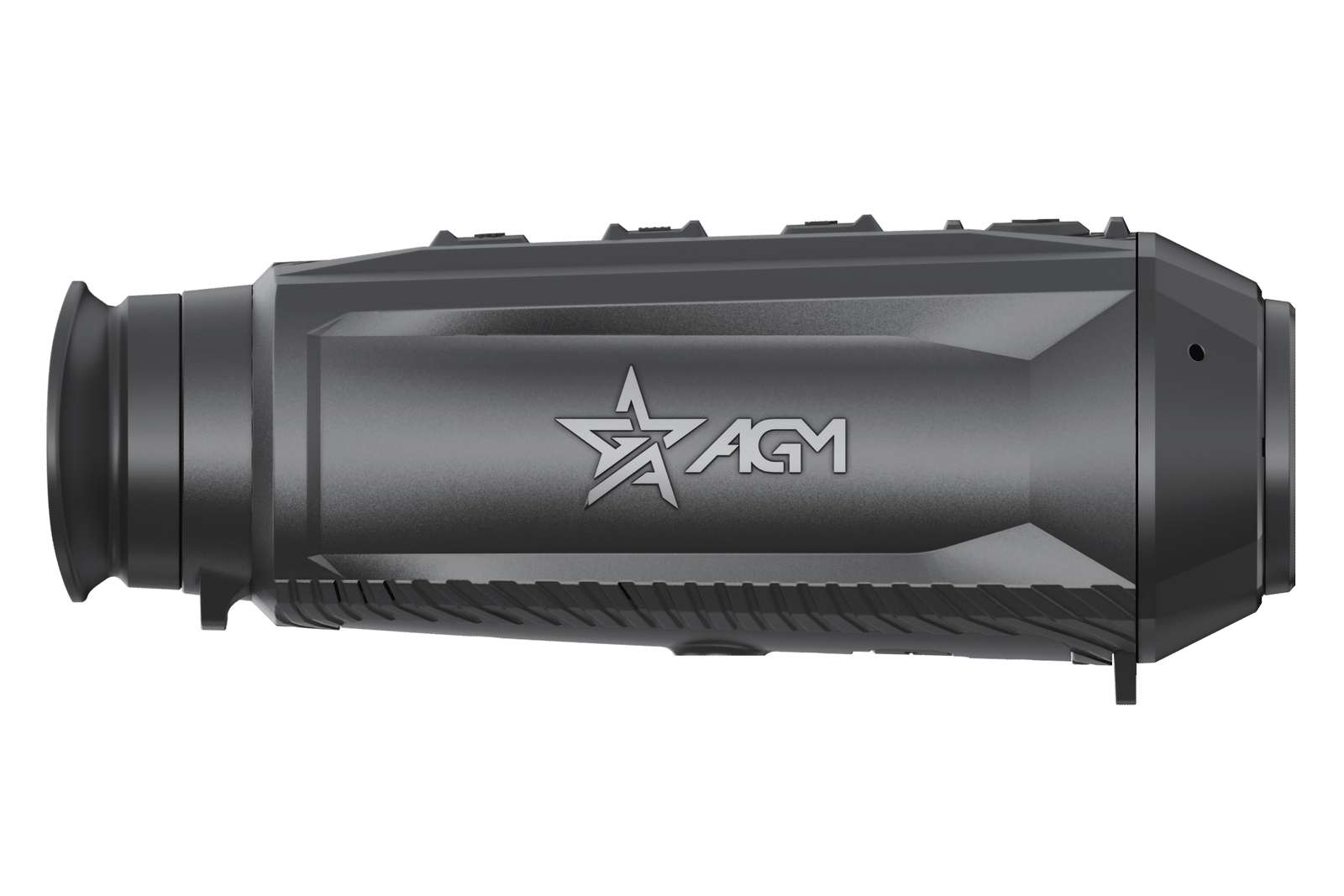

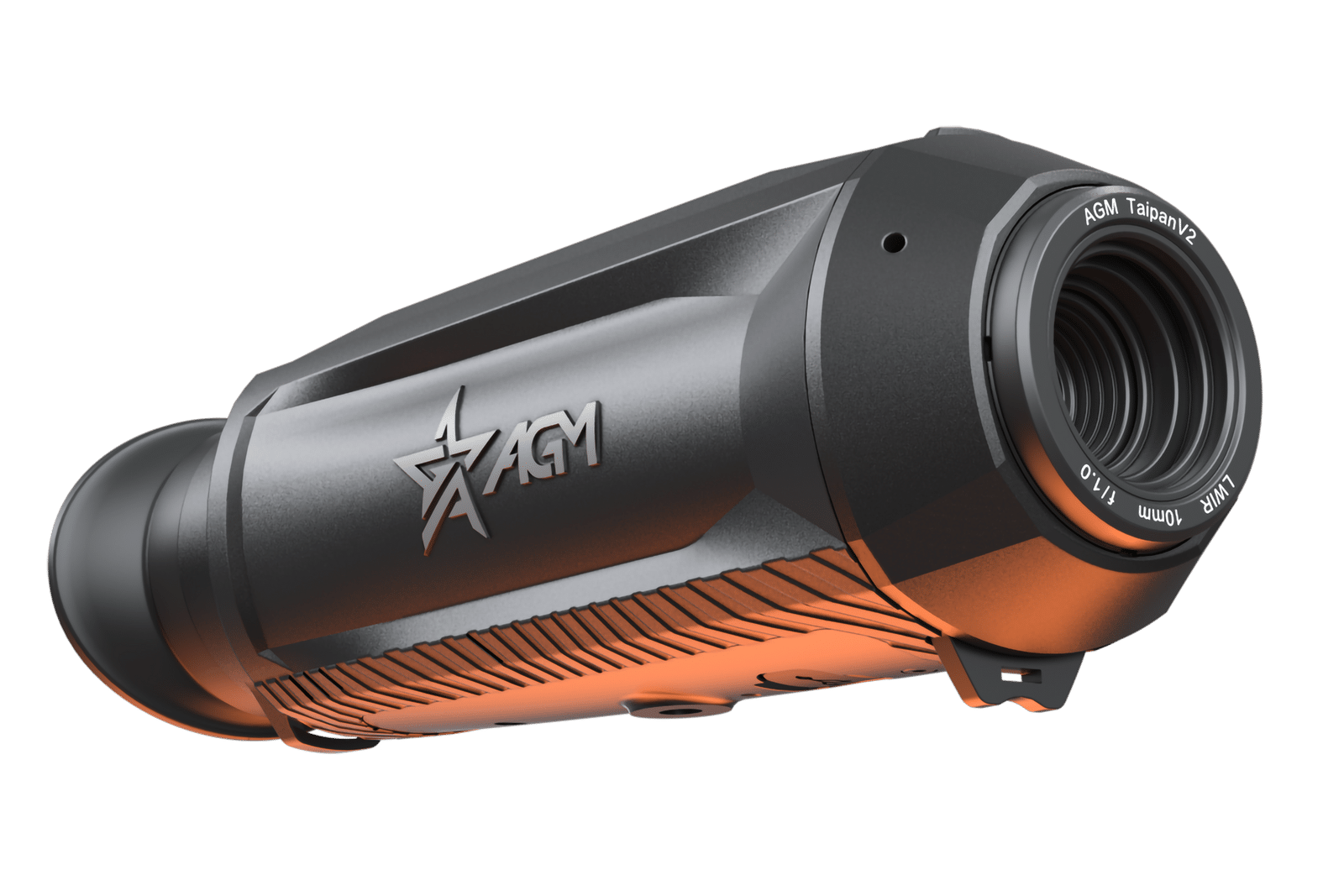

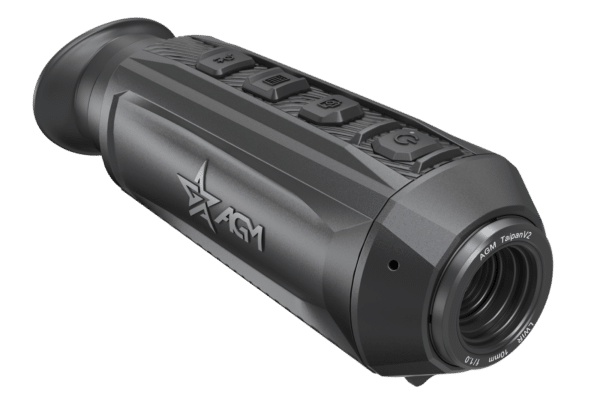

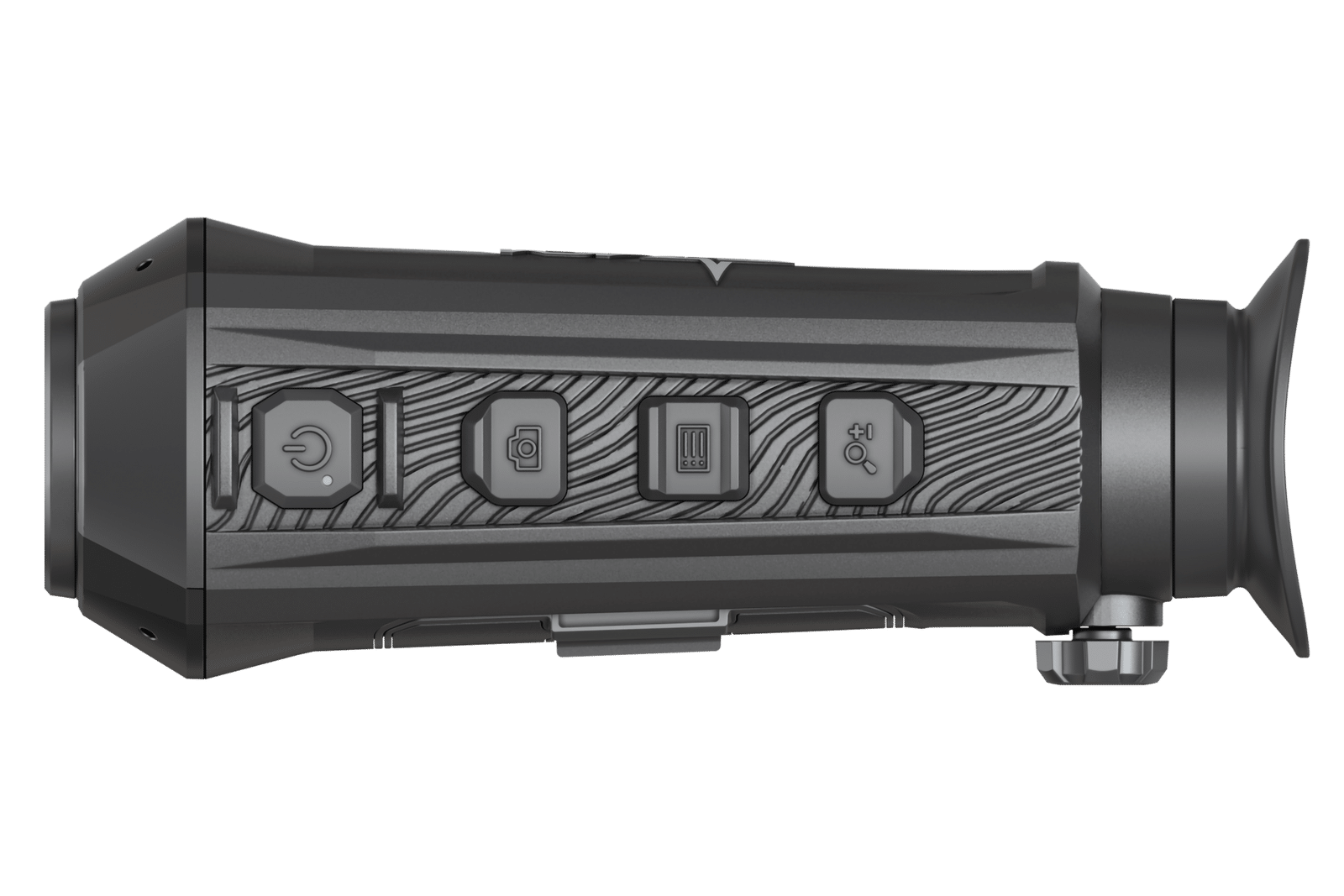

AGM Taipan TM10-256 Thermal Imaging Monocular 12 Micron 256×192

$549.00

SKU: 3092851013TA01 Category:

Description

The Taipan TM10-256 handheld observational thermal monocular is equipped with a 256×192 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.

Warning: California’s Proposition 65

FUNCTIONS:

Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.

Mode Switch:
Device supports pallet switch and distance measurement.

Storage:
Built-in memory module supports video recording/snapshot capturing.

Digital Zoom:
Device supports 1×, 2×, 4×, and 8× digital zoom.

Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.

256×192 resolution, 12 μm, high sensitivity detector
Adaptive AGC, DDE, 3D DNR
720 × 540 LCOS display
Built-in rechargeable Lithium battery
Up to 8 hours continuous running (with Wi-Fi hotspot function off)
“Auto Power Off” and “Sleep” modes
Wi-Fi hotspot
Type-C interface
Limited 3-year warranty

SPECIFICATIONS
Palettes

Black Hot, White Hot, Red Hot, Fusion

Working Temperature

-20°C to 55°C (-4°F to 131°F)

Interface

USB Type-C

Pixel Interval

12 μm

Multi Language menu

Yes

Drop Test Height

1.5 m (4.9 feet)

Digital Magnification

1x – 8x

Detector type

Vanadium Oxide Uncooled Focal Plane Arrays

Response Waveband

8μm to 14μm

FFC (Flat Field Correction)

Auto, Manual, External Correction

Highest Temperature Spot Tracking

Yes

Standby Mode

Yes

Refresh rate

Sensor 25 Hz / OLED 50 Hz

Aperture

F1.0

Resolution

256×192

Detection Range

460m/yd

NETD

Less than 35 mk (@25°C), F#=1.0

Lens (focal length)

10 mm

Power

5 VDC/2 A, 1.5 W

Field of view (H × X)

18.00° × 13.55° (H × V)

Digital zoom

1×, 2×, 4×, 8×

Monitor

720×540, 0.2 inch, LCOS

Storage

Built-in memory module (8 GB)

Record Video

On-board video recording

Capture Snapshot

Yes

Battery Type

Built-in rechargeable Lithium battery

Wi-Fi

Yes

CVBS Output

Yes (via USB)

Battery Operating Time

Up to 8 hours continuous running (with Wi-Fi hotspot function off)

Battery Capacity Display

Yes

Weight

260 g (0.57 lb)

Overall Dimensions

158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)

Protection Level

IP67

Magnification

1x
