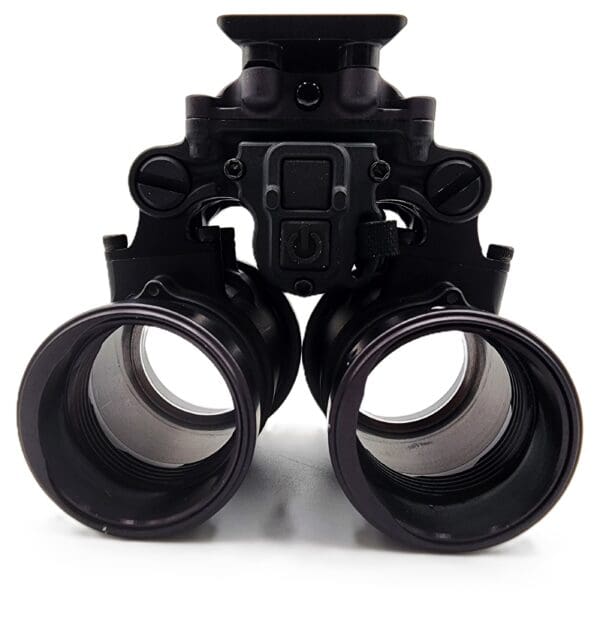

AB Night Vision RNVG-A Housing — Builder Kit

The RNVG-A housing from AB Night Vision is billet aircraft-grade aluminum with articulating pods, coin-adjustable pod tension, CR123 onboard (~16 hrs) + 4-pin LEMO external port, auto pod shutoff when articulated up, and in-view IR/low battery indicators. 170g housing only; ~567g complete. IPD 47–80mm+. Lifetime housing warranty.

This is a housing-only kit for builders who want to assemble their own night vision system. Tubes are not included — you source your own tubes and bring them to us for assembly, or install them yourself. Optics (lenses) are available as a selection at checkout.

Key Specs

Manufacturer	AB Night Vision (USA)
Material	Billet aircraft-grade aluminum, black anodized
Weight	170g housing; ~567g complete built
Dimensions	4.14″ × 4.2″ × 3.2″
Power	CR123 (~16 hrs) + 4-pin LEMO external port
IPD	47–80mm+
Pod tension	Coin-adjustable
Auto shutoff	Yes — each pod off when articulated up
Housing warranty	Lifetime

Choosing Your Tube

Elbit XLSH White Phosphor — Gen 3, U.S.-made

Thin-filmed autogated. White phosphor. 10-year warranty.

Elbit XLSH Green Phosphor — Gen 3, U.S.-made

Thin-filmed autogated. Green phosphor. 10-year warranty.

Elbit PH White Phosphor — Gen 3, U.S.-made

Thin-filmed autogated. White phosphor. 10-year warranty.

NNVT 1600+ FOM — Gen 2+ Autogated White Phosphor

NNVT autogated white phosphor, 1600+ FOM. 2-year warranty.

Warranty

Housing: lifetime. U.S. Gen 3 tubes: 10-year. NNVT: 2-year.

ITAR controlled. For sale to U.S. persons only.
