Description

Aviation-Grade Glass for Your PVS-14 Build

Brightpath Solutions SG was founded by former key members of the Qioptiq/Excelitas night vision optics division — the team behind some of the most respected NV glass ever fielded. These are fully Mil-qualified PVS-14 optics that carry that lineage forward.

The prescription takes the high-resolution performance of aviation systems — AVS-6/9 and F5050 class — and pairs it with ground-optimized coatings, without the cockpit light filters that cut wavelengths. The result is a clearer, brighter, lower-distortion image that lets a good Gen 3 tube show you everything it has.

Choose Your Option

• PVS-14 Objective Lens — the front glass. Meets the optical and environmental performance specs of MIL-L-49426 (aviation filters removed).
• PVS-14 Eyepiece — MIL-L-49427 compliant with a mil-spec diopter assembly.

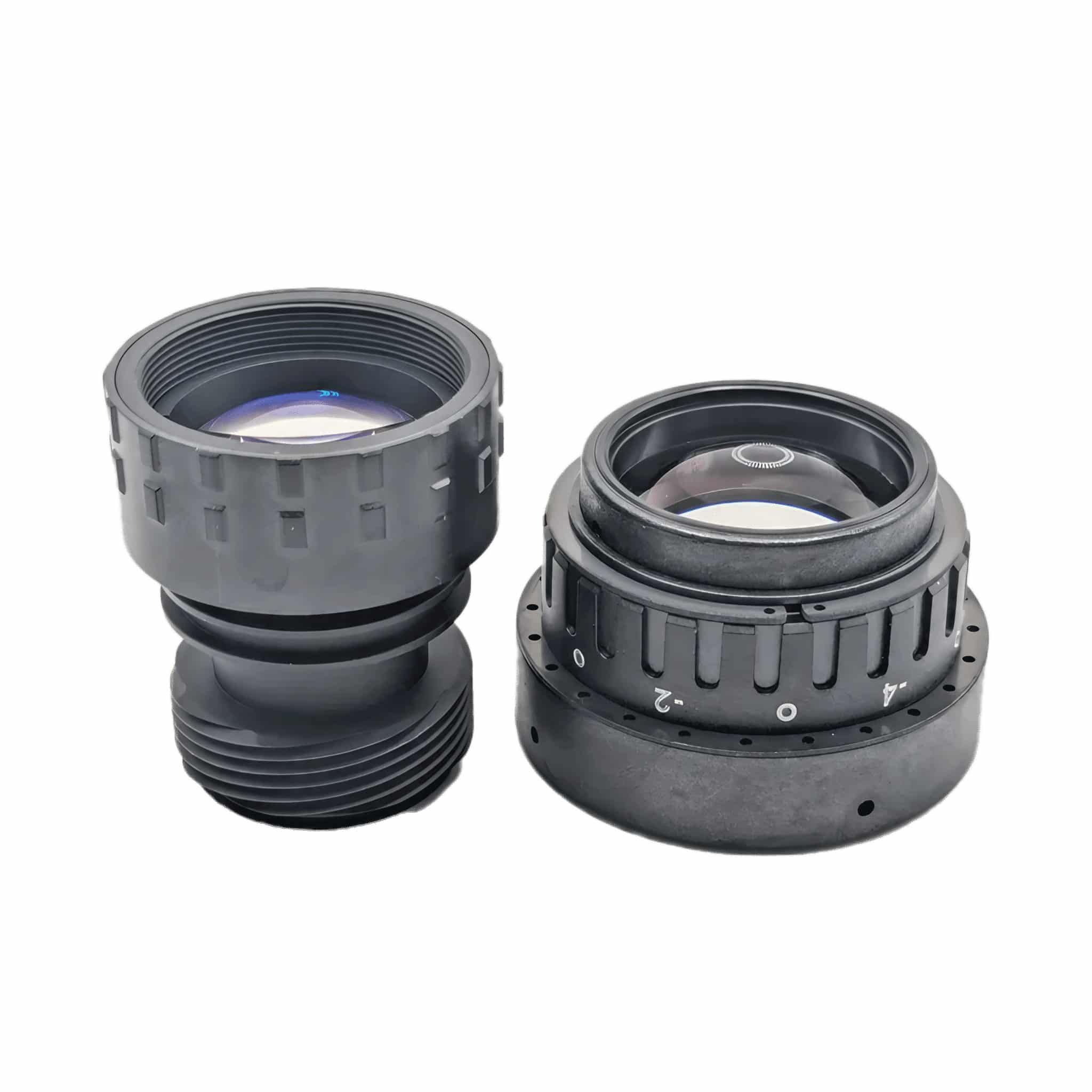

• PVS-14 Optics Set — objective and eyepiece together. The way to get the full benefit of the matched prescription.

Specifications

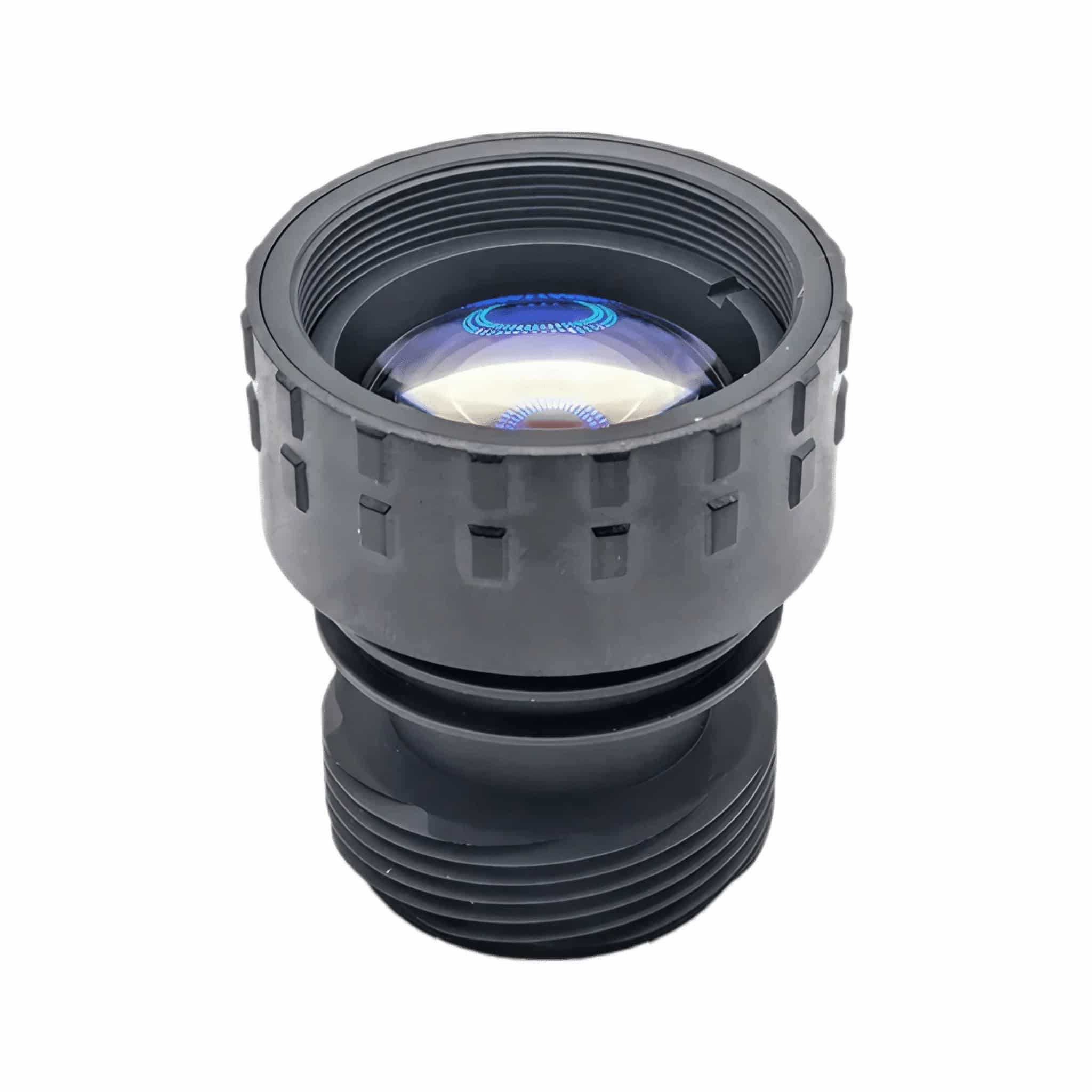

Objective

• Compliant to the optical and environmental performance specifications of MIL-L-49426 (aviation filters removed)
• Aluminum body with ULTEM 1000 knurling
• Weight: ~54 g

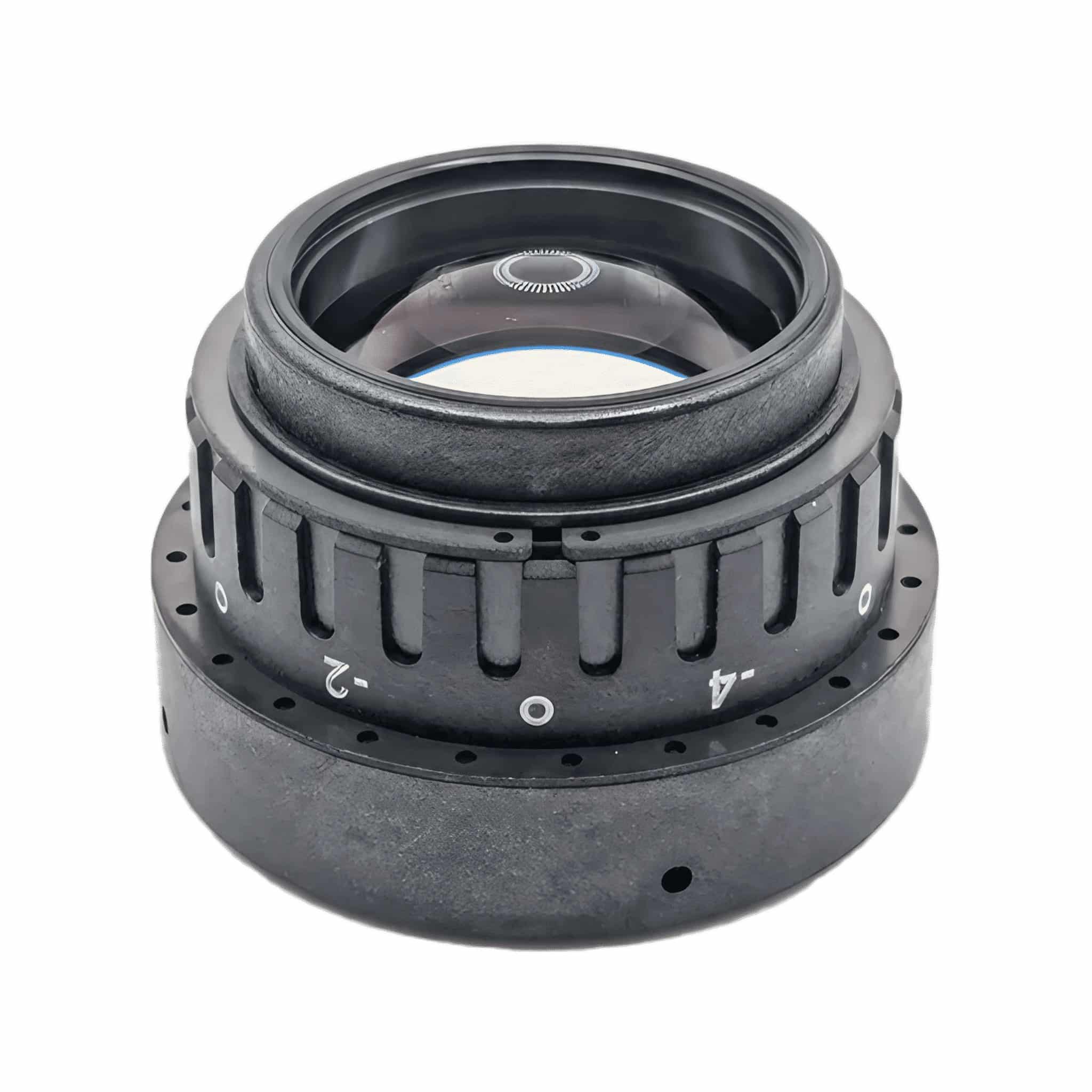

Eyepiece

• Compliant to MIL-L-49427
• Aluminum optical spacer body with ULTEM 2200 overcoat
• Mil-spec diopter assembly made of ULTEM 2200
• Weight: ~60.5 g

Origin & Compliance

• Compliant with the US Trade Agreements Act (TAA)
• Glass optical components by SCHOTT AG and Ohara Corp
• Mechanical components made in Taiwan; optical assembly in Singapore; final mechanical assembly in Canada

Fitment Note — Read Before Ordering

The objective’s O-ring shelf height differs slightly from some other objective lenses. It is designed for housings that conform to PVS-14 specifications and use either internal close-focus stops or D collars (infinity collars that double as close-focus stops). Match the stop to your housing: a D-collar housing must use a D collar, and internal close-focus stops should not be used on shortened housings that require D collars. Fitment may vary in non-conforming housings.

Not sure which close-focus stop your housing needs? Call us at (888) 330-7057 before you order — we will sort it out in two minutes.
