Description

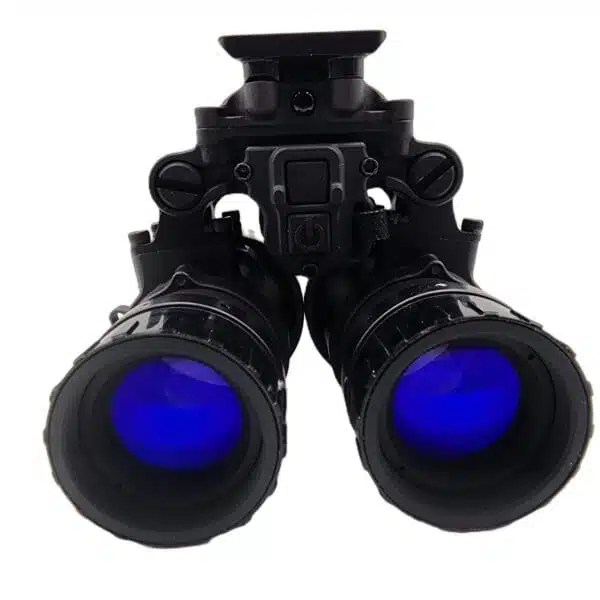

AB Night Vision RNVG-A — Articulating Ruggedized Night Vision Goggle

The RNVG-A (also known as ARNVG) is the articulating version of AB NightVision’s ruggedized binocular. Billet machined from aircraft-grade aluminum at AB NightVision’s facility in Bristol, Virginia — the same construction as the proven RNVG housing, with independent articulating pods that can be repositioned or folded flat against the helmet. During drop testing the housings far exceeded MIL-STD-810H requirements, surviving falls onto bare concrete from heights beyond what lenses and image intensifiers can handle. AB NightVision backs the housing with a lifetime warranty.

---

Why Operators Choose the RNVG-A

Billet aircraft-grade aluminum housing

Same material and construction standard as the RNVG. Media blasted for non-reflective matte finish, black anodized for durability. FDE option uses Cerakote over the anodizing.

Independent articulating pods

Each pod rotates independently. Fold one or both up out of the field of view without removing the goggle from the mount. When stowed, pods fold flat against the helmet — reducing neck strain and protecting both the goggle and the operator from overhead impacts.

Auto pod shutoff

Pods automatically cut power when articulated up — no helmet glow, no accidental tube exposure.

User-adjustable pod tension

Articulation resistance is adjustable with a coin — set to your preferred resistance in the field.

Wide IPD range

47mm to over 80mm interpupillary adjustment — wider than most binocular platforms.

Push-button controls

Separate push buttons for power and IR illuminator. The IR button is guarded by a fence to prevent accidental activation. In-view indicators for IR on and low battery.

CR123 onboard + LEMO external port

Single CR123 battery for ~16 hours runtime. 4-pin LEMO connector for external battery pack.

---

Choosing Your Tube

Elbit PH White Phosphor — Tighter spot specifications than XLSH. Fewer and smaller blemishes in the image area for a cleaner viewing experience. 10-year warranty.

L3Harris 24UA Unfilmed White Phosphor — Top of the L3Harris unfilmed lineup. Improved contrast, strong SNR, highly regarded by experienced operators. U.S.-made Gen 3. 10-year warranty.

L3Harris 24UAH SuperGain White Phosphor — Enhanced sensitivity at the extreme low end of the light spectrum. Top-of-line L3Harris performance. U.S.-made Gen 3. 10-year warranty.

What is FOM?

Figure of Merit is calculated by multiplying a tube’s resolution (line pairs per mm) by its signal-to-noise ratio. A higher FOM generally indicates better overall performance, but two tubes with identical FOM can render differently in the field. Every tube ships with its actual measured datasheet.

Hand Select

Email us to request datasheets on available tubes before purchasing. You’ll see the actual measured specs — FOM, SNR, resolution, EBI, and halo — for the specific tube going into your unit. Call (888) 330-7057 or email sales@superiortac.com — we carry more configurations than the dropdown shows.

---

Specs at a Glance

Housing	Billet aircraft-grade aluminum
Colors	Flat Black (anodized), FDE (Cerakote)
Magnification	1x
FOV	40°
Focus range	9.8″ to infinity
IPD	47mm to 80mm+
Diopter	-6 to +2
Eye relief	25mm
Power	1x CR123 (~16 hrs) + 4-pin LEMO external port
Weight	170g housing; 567g with std milspec optics + L3 tubes (no battery)
Dimensions	4.14″ × 4.2″ × 3.2″
Water resistance	Submersible to 66ft
Standard	Exceeds MIL-STD-810H
Tube format	MX-10160 (PVS-14 compatible)

---

Warranty

Housing: Lifetime warranty on housing parts and workmanship from AB NightVision.

U.S.-made Gen 3 tubes (Elbit and L3Harris): 10-year warranty — covers the full unit including housing, optics, electronics, and tube. Does not cover accidental damage or misuse.

All units from Superior Tactical are backed by in-house repairs with free diagnostic. If something goes wrong, you’re calling us.

---

Who Buys the RNVG-A from Superior Tactical

Operators who want ruggedized binocular NV with the flexibility of independent pod articulation. Common among buyers who transition frequently between binocular and monocular configurations, or who want the option to use one eye while running a weapon-mounted thermal. The RNVG-A delivers the same billet aluminum construction and lifetime warranty as the RNVG in an articulating format.

---

Common Questions

What is the difference between the RNVG and RNVG-A?
The RNVG-A adds independent pod articulation — each pod can be repositioned or folded without removing the unit from the mount. The standard RNVG is a fixed-bridge binocular. Same housing material, same warranty. Choose RNVG-A for articulation flexibility, RNVG for the simplest fixed-bridge setup.

Can I see the tube datasheet before I buy?
Yes — email us to request datasheets before purchasing.

How fast does it ship?
Most orders ship within 1–2 business days.

This product is subject to U.S. export control laws. ITAR controlled. For sale to U.S. persons only.
